501-19 Bumpers 2016 Mustang

Removal and Installation Procedure revision date: 10/28/2015

Front Bumper Cover

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2. Remove the front wheels and tires. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

3. Remove the push pins, screws and the lower air deflector.

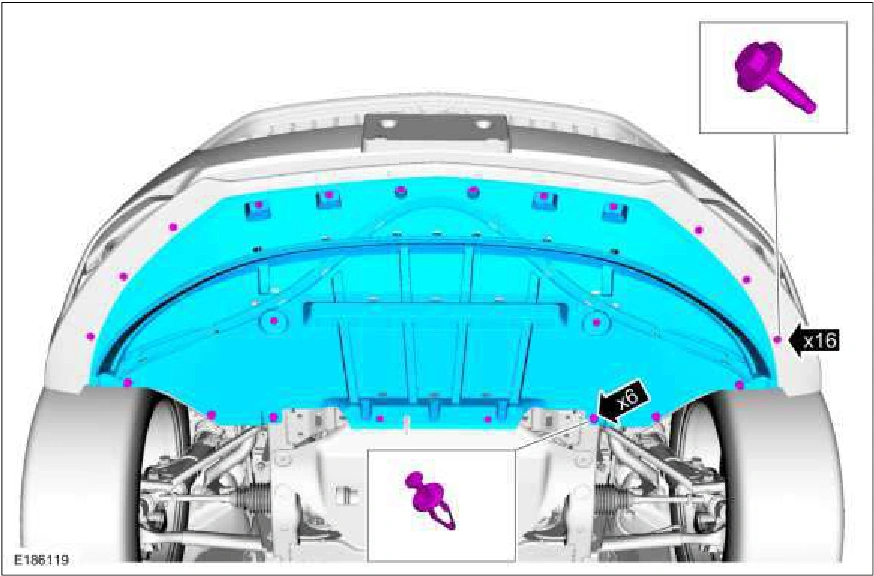

Front Bumper Cover — original illustration 1, reference 1661Original colors & callouts · Select to enlarge

4. NOTE: On both sides.

Remove the push pins.

Source reference 1661
