Front Bumper Cover — 2016 workshop reference 1664

Front Bumper Cover — original illustration 1, reference 1664Original colors & callouts · Select to enlarge

9. If equipped, remove the screws and the license plate bracket.

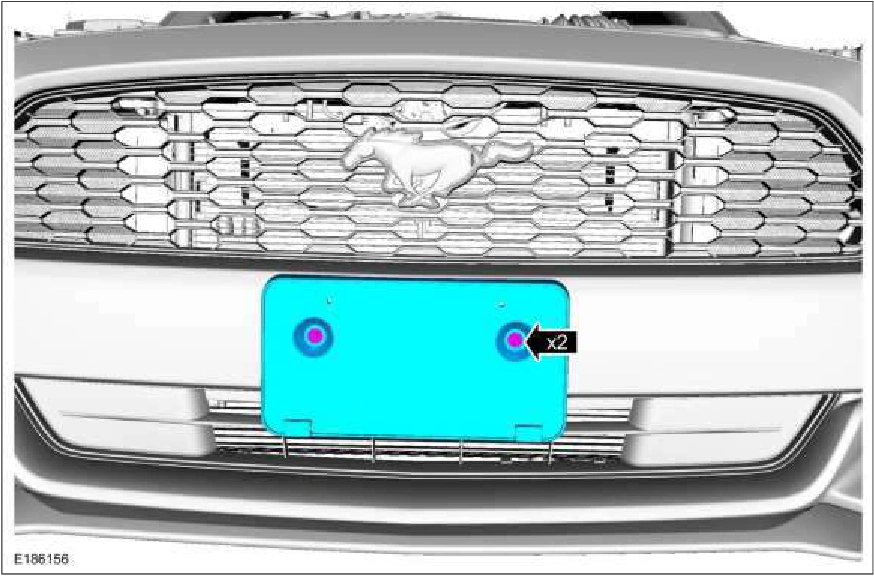

Front Bumper Cover — original illustration 2, reference 1664Original colors & callouts · Select to enlarge

10. NOTE: On both sides.

Position aside the outer edge of the hood seal and remove the bolt. Torque : 15 lb.in (1.7 Nm)

Source reference 1664
