Front Bumper Cover — 2016 workshop reference 1662

Front Bumper Cover — original illustration 1, reference 1662Original colors & callouts · Select to enlarge

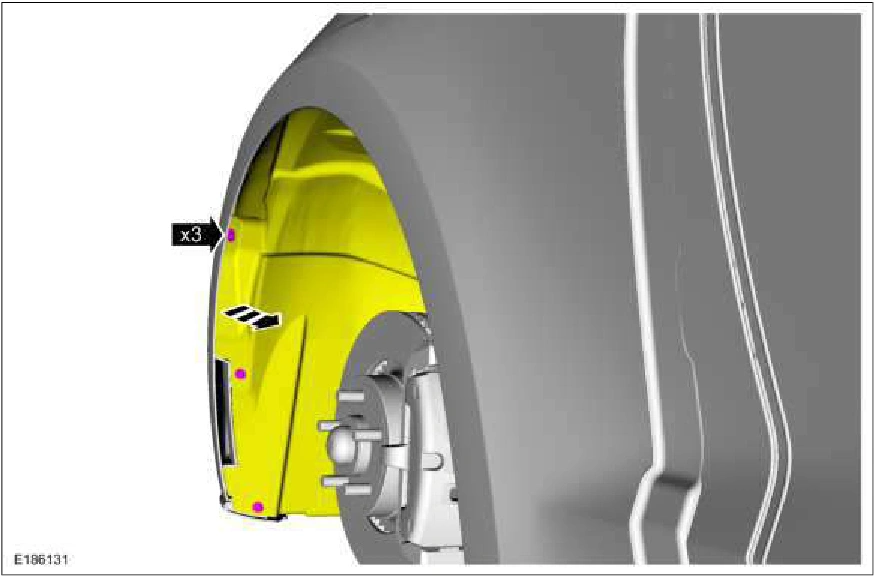

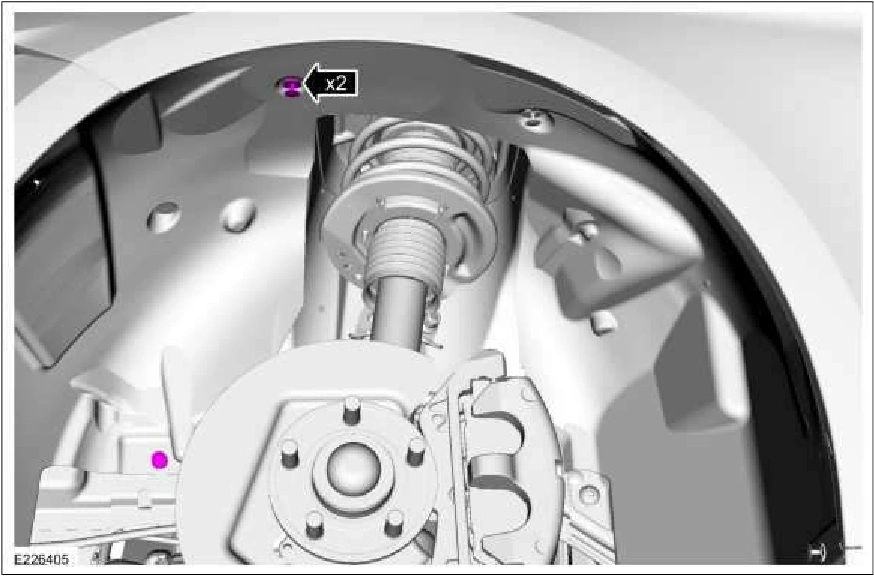

5. NOTE: On both sides.

Remove the push pins and position the inner fender liner aside.

Front Bumper Cover — original illustration 2, reference 1662Original colors & callouts · Select to enlarge

6. NOTE: Halogen foglamp shown, LED fog lamp is similar.

NOTE: On both sides.

Disconnect the electrical connectors.
