Front Bumper Cover — 2016 workshop reference 1665

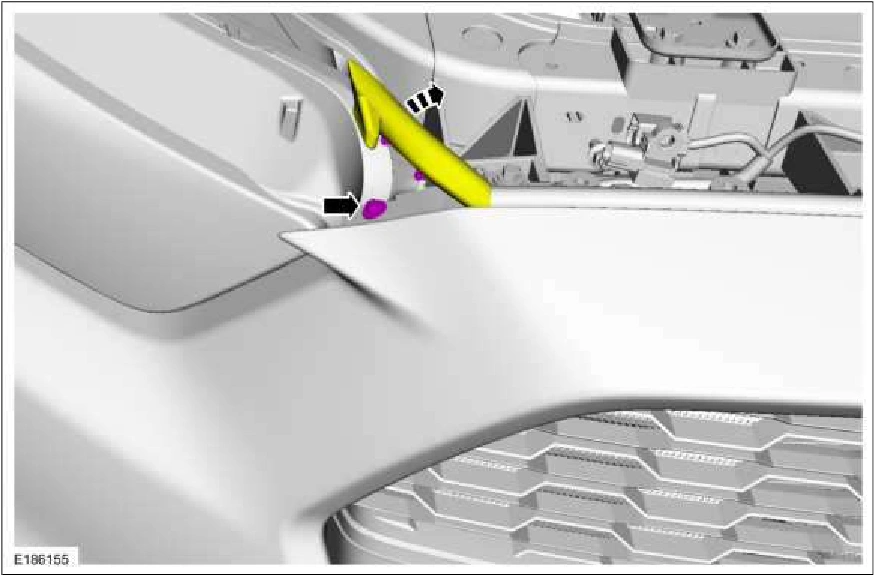

Front Bumper Cover — original illustration 1, reference 1665Original colors & callouts · Select to enlarge

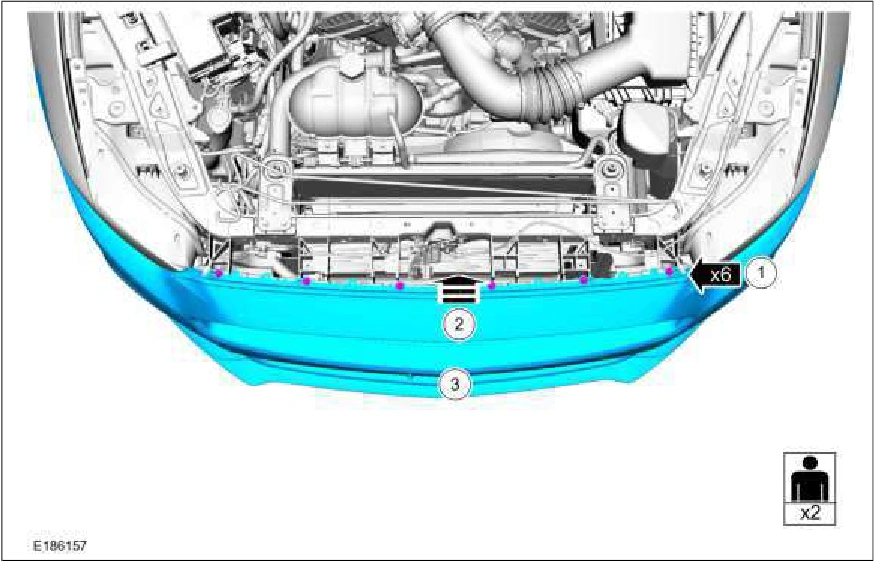

11. Remove the front bumper cover.

1. Remove the screws. Torque : 48 lb.in (5.4 Nm)

2. Lift the front bumper cover up and off the alignment pins.

3. Pull the front bumper cover forward and off the vehicle.

Front Bumper Cover — original illustration 2, reference 1665Original colors & callouts · Select to enlarge

12. Inspect the fender bracket teeth for damage.
