Front Bumper Cover - Vehicles With: SVT Performance Package — 2016 workshop reference 1668

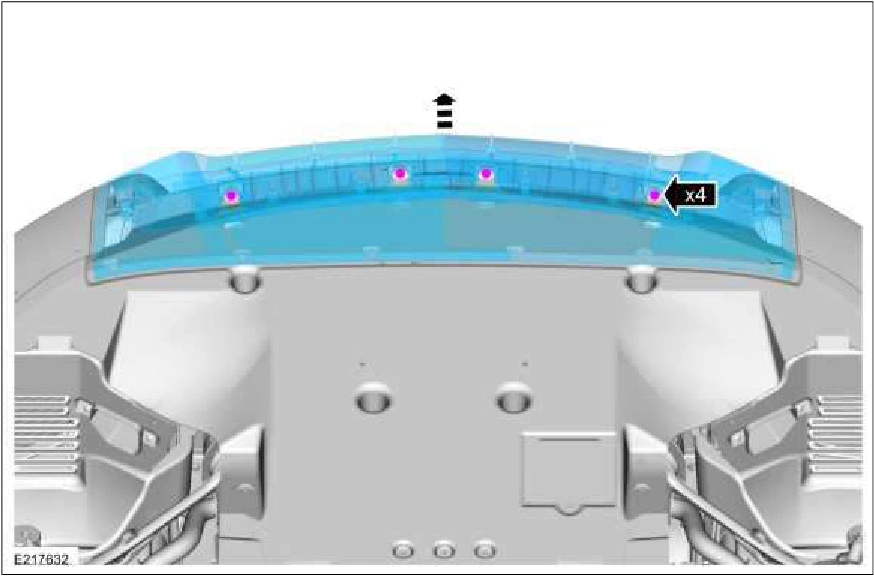

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1668Original colors & callouts · Select to enlarge

5. NOTE: On both sides.

NOTE: Access the outer air splitter screws through the opening created from the center air splitter removal.

Remove the outer air splitter screws and J-nuts. Torque : 17 lb.in (1.9 Nm)

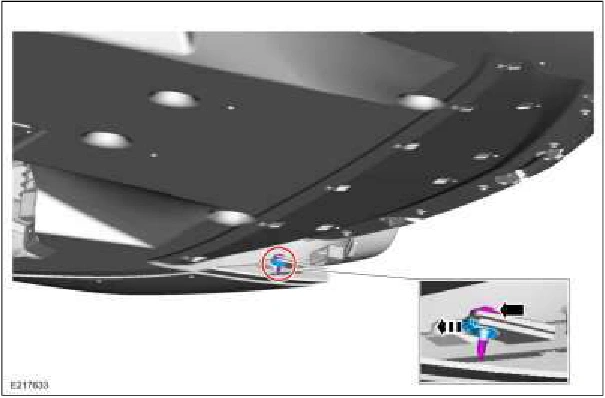

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1668Original colors & callouts · Select to enlarge

6. NOTE: On both sides.

Remove the push pins.
