Front Bumper Cover - Vehicles With: SVT Performance Package — 2016 workshop reference 1667

501-19 Bumpers 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Front Bumper Cover - Vehicles With: SVT Performance Package

Removal

All vehicles

1. Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2. Remove the front wheels and tires. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

GT-350 vehicles

3. Remove the air splitter screws.

1. Remove the screws starting with the outward screws and working to the center screws. Torque : 17 lb.in (1.9 Nm)

2. Remove the screws starting with the outward screws and working to the center screws. Torque : 17 lb.in (1.9 Nm)

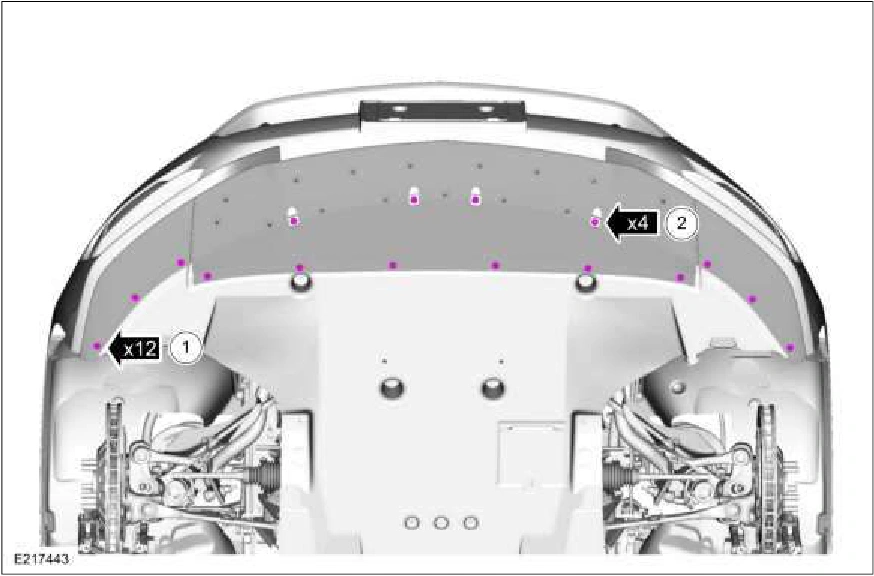

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1667Original colors & callouts · Select to enlarge

4. Remove the screws starting with the outward screws and working to the center screws and slide the center air splitter forward to remove.

Source reference 1667
