Front Bumper Cover - Vehicles With: SVT Performance Package — 2016 workshop reference 1670

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1670Original colors & callouts · Select to enlarge

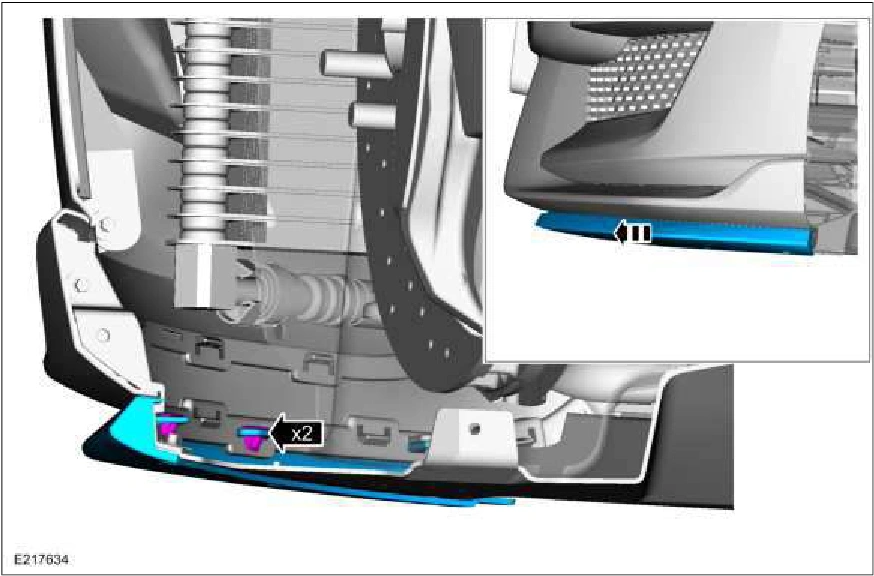

9. NOTE: On both sides.

Remove the retaining clips and the outer air splitters.

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1670Original colors & callouts · Select to enlarge

GT-350R vehicles

10. Remove the air splitter screws.

1. Remove the screws starting with the outward screws and working to the center screws. Torque : 17 lb.in (1.9 Nm)

2. Remove the screws starting with the outward screws and working to the center screws. Torque : 17 lb.in (1.9 Nm)
