Front Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,673 / 6,619HTML edition

← Chapter contents Procedure contents

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1673Original colors & callouts · Select to enlarge

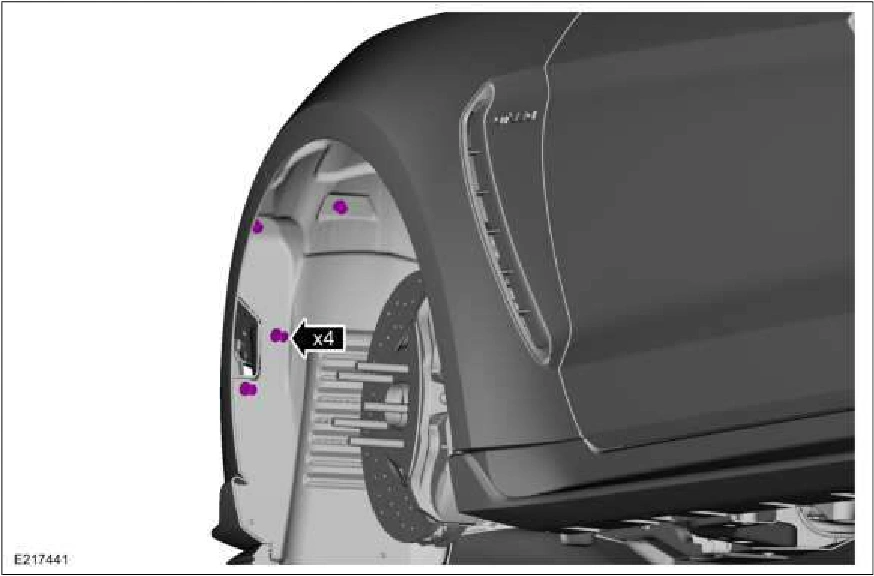

15. NOTE: On both sides.

Remove the pin-type retainers and position the fender liner aside.

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1673Original colors & callouts · Select to enlarge

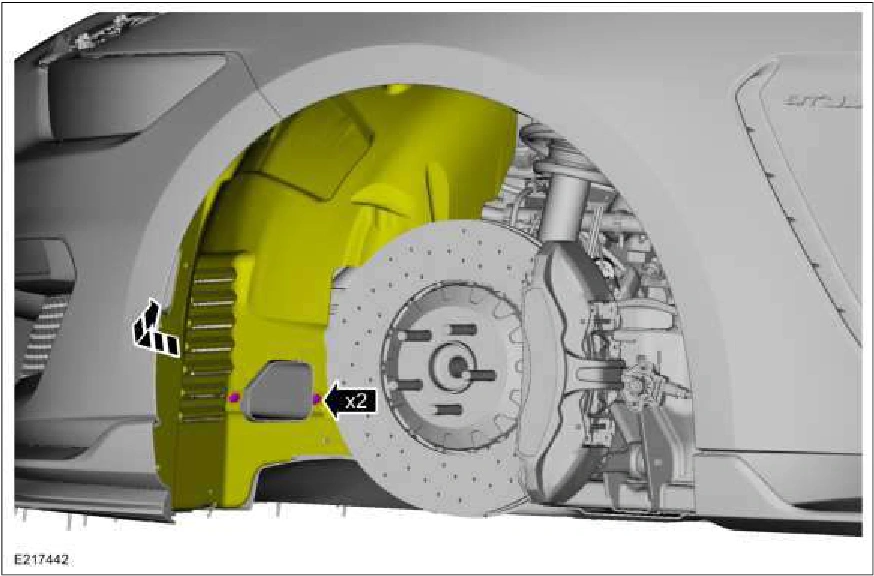

16. NOTE: On both sides.

Remove the retaining clips.
