Front Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,674 / 6,619HTML edition

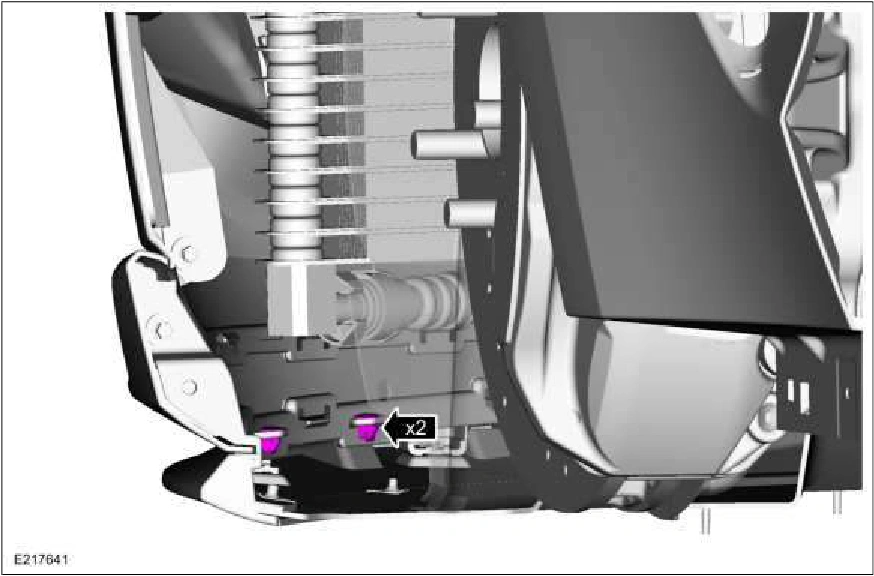

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1674Original colors & callouts · Select to enlarge

17. Remove the screws starting with the outward screws and working to the center screws and slide the center air splitter forward to remove.

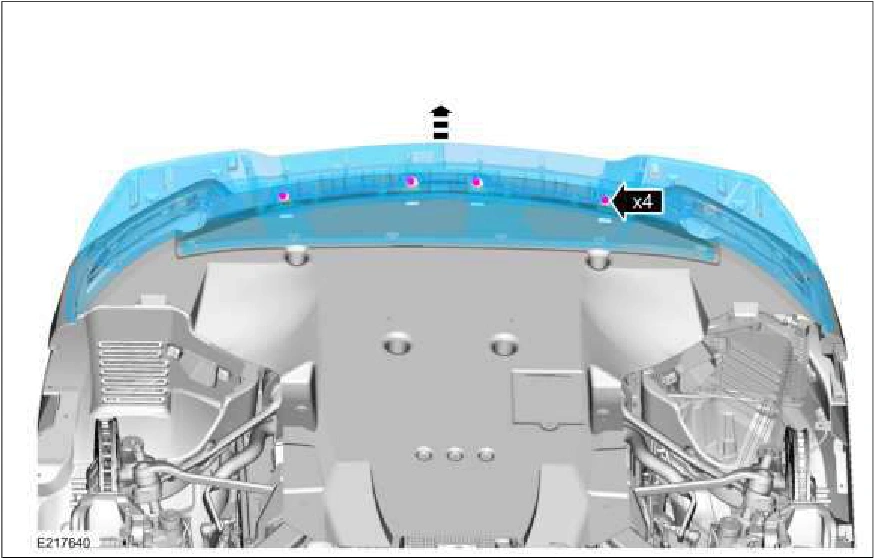

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1674Original colors & callouts · Select to enlarge

All vehicles

18. Remove the underbody shield front screws. Torque : 20 lb.ft (27 Nm)

Source reference 1674
