Front Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,677 / 6,619HTML edition

← Chapter contents Procedure contents

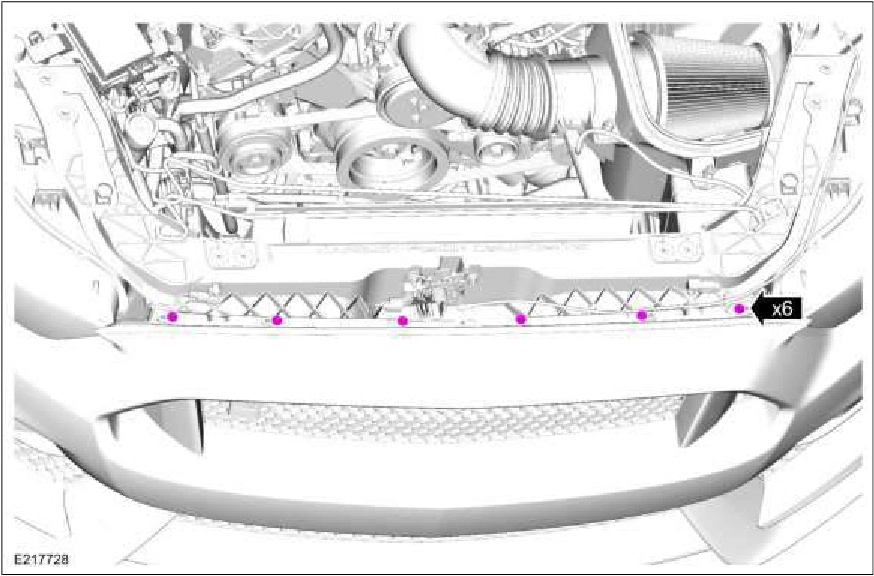

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1677Original colors & callouts · Select to enlarge

23. Remove the front bumper cover.

1. Lift the front bumper cover up and off the alignment pins.

2. Pull the front bumper cover forward and off the vehicle.

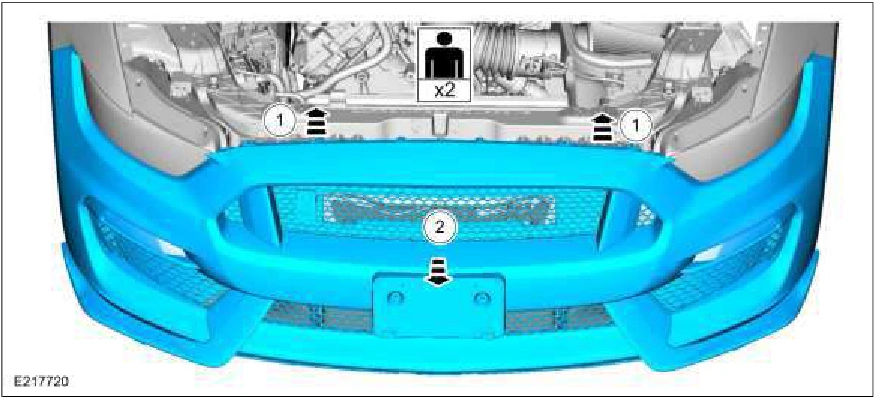

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1677Original colors & callouts · Select to enlarge

24. Inspect the fender bracket teeth for damage.

Source reference 1677
