501-19 Bumpers 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Rear Bumper

Base Part Number: 17F838

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the rear bumper cover. Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

2. Remove the bolts and the rear bumper. Torque : 18 lb.ft (25 Nm)

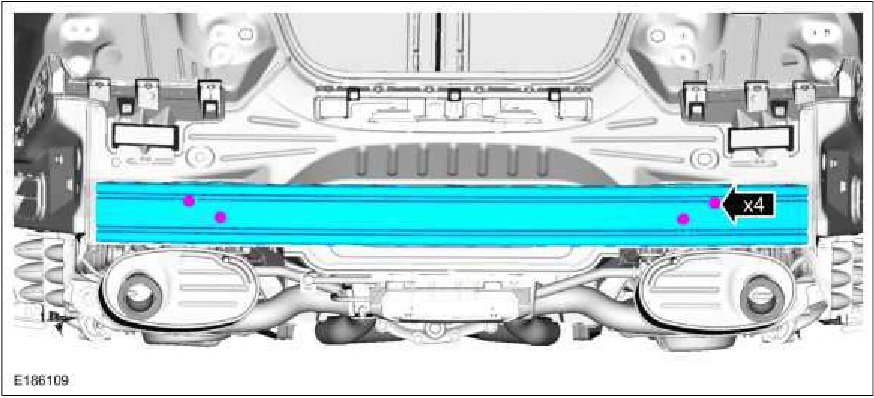

Rear Bumper — original illustration 1, reference 1679Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.
