Front Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,676 / 6,619HTML edition
← Chapter contentsProcedure contents

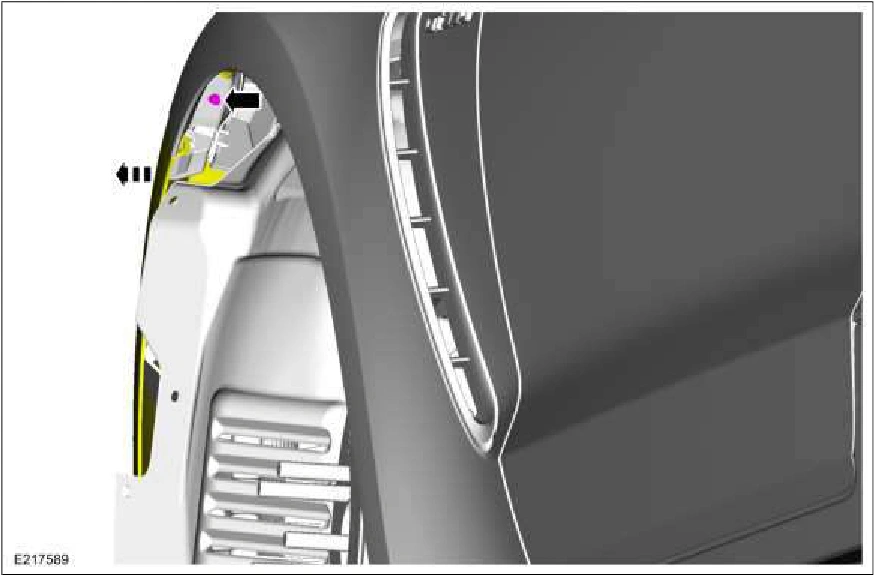

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1676Original colors & callouts · Select to enlarge

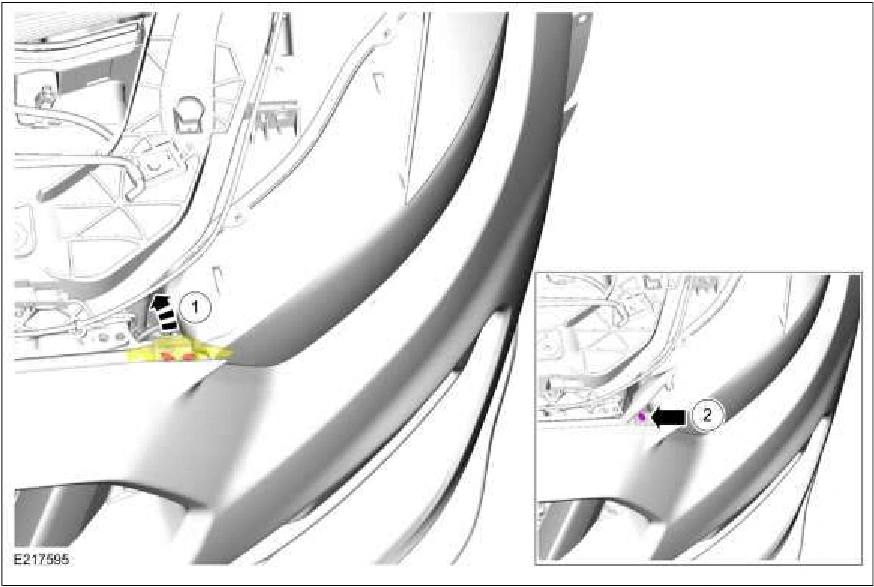

21. NOTE: On both sides.

Remove the top outer front bumper cover screws.

1. Position aside the outer edge of the hood seal.

2. Remove the top outer bolts. Torque : 15 lb.in (1.7 Nm)

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1676Original colors & callouts · Select to enlarge

22. Remove the screws. Torque : 48 lb.in (5.4 Nm)
