Front Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,675 / 6,619HTML edition

← Chapter contents Procedure contents

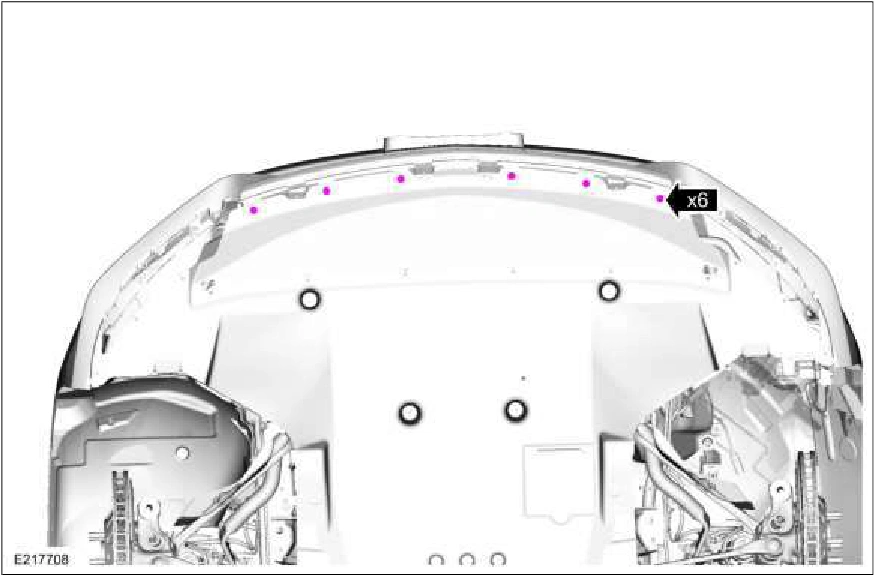

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1675Original colors & callouts · Select to enlarge

19. NOTE: On both sides.

Disconnect the electrical connectors.

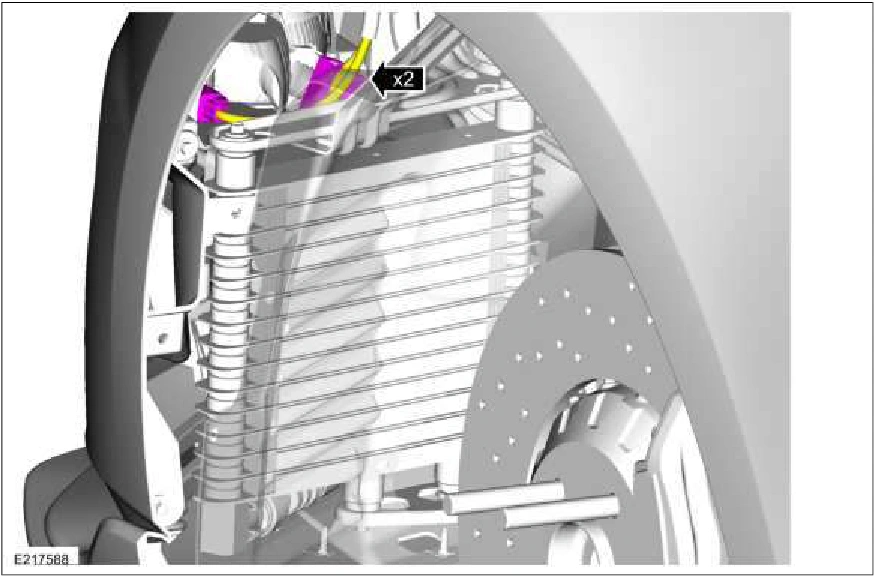

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1675Original colors & callouts · Select to enlarge

20. NOTE: On both sides.

Remove the bolt and separate the front bumper cover from the fender bracket. Torque : 15 lb.in (1.7 Nm)
