Front Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,672 / 6,619HTML edition

← Chapter contents Procedure contents

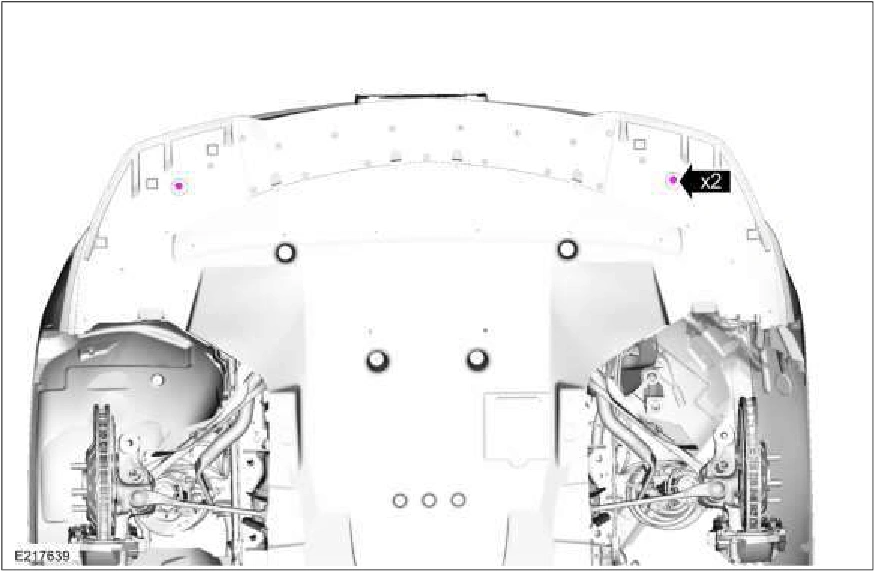

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1672Original colors & callouts · Select to enlarge

13. NOTE: On both sides.

Remove the push pins.

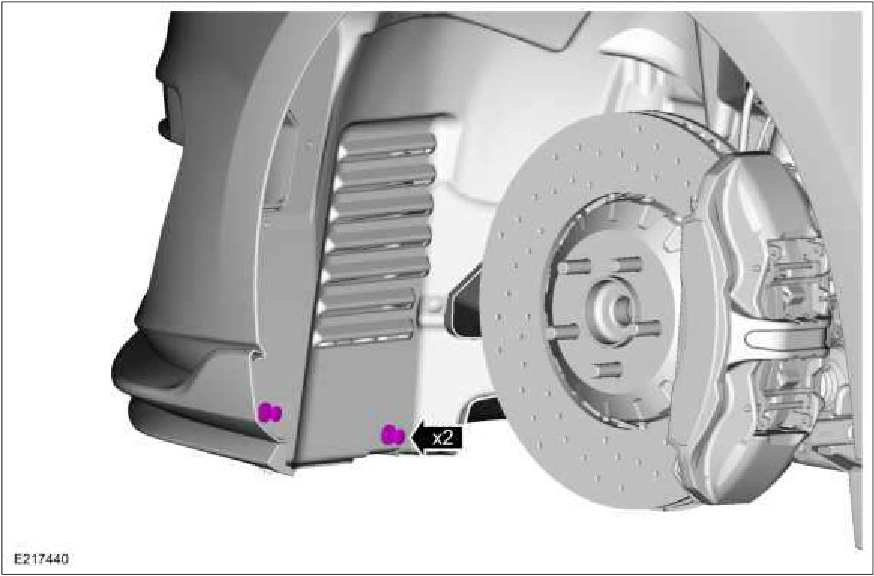

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1672Original colors & callouts · Select to enlarge

14. NOTE: On both sides.

Remove the push pins.
