Front Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,671 / 6,619HTML edition

← Chapter contents Procedure contents

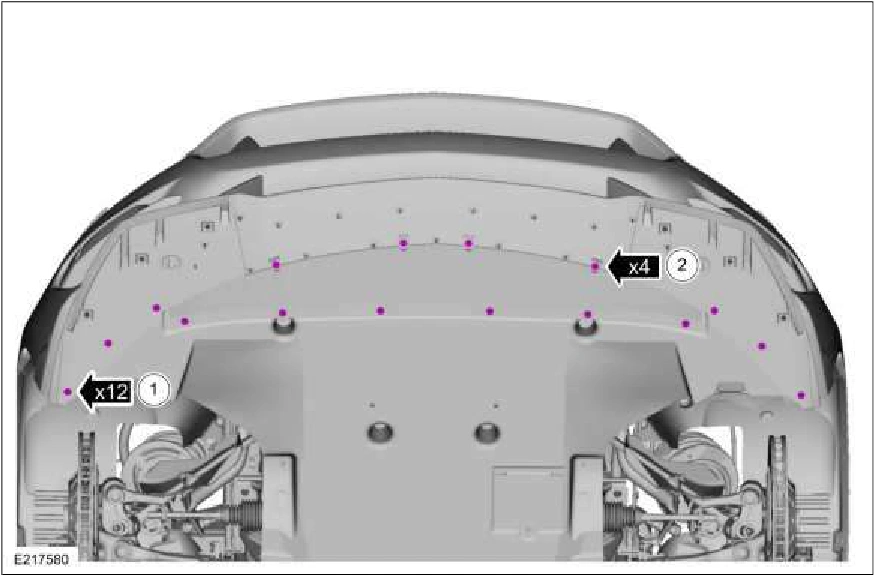

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1671Original colors & callouts · Select to enlarge

11. Remove the screw covers.

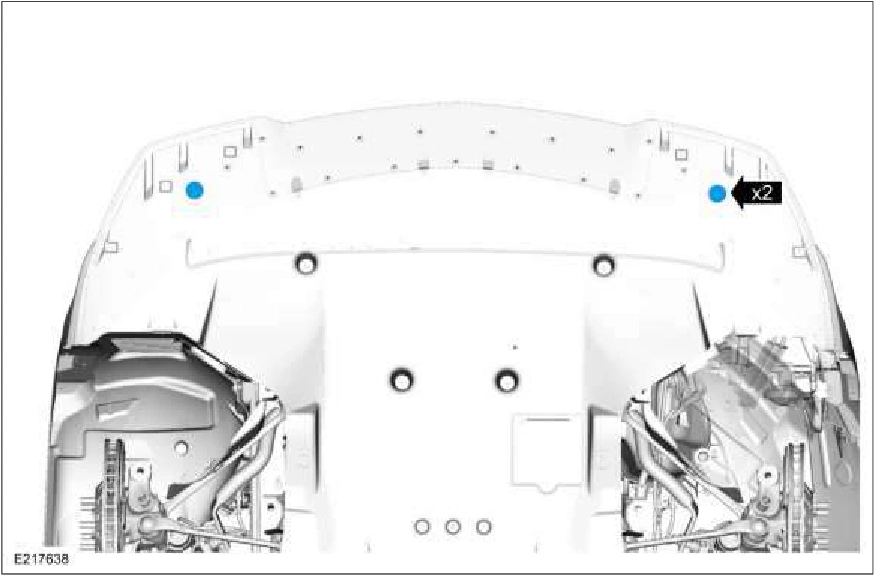

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1671Original colors & callouts · Select to enlarge

12. Remove the air splitter screws. Torque : 17 lb.in (1.9 Nm)
