Rear Bumper Cover — 2016 workshop reference 1681

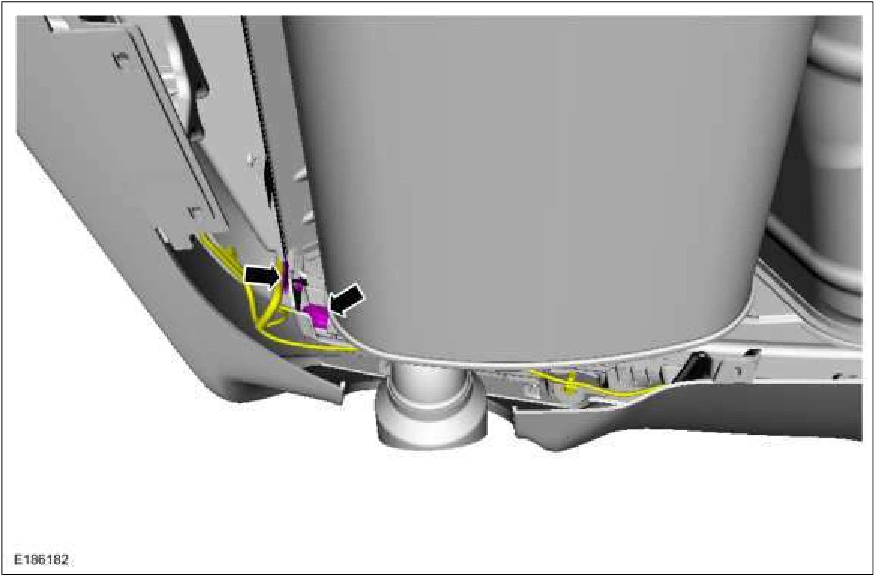

Rear Bumper Cover — original illustration 1, reference 1681Original colors & callouts · Select to enlarge

4. Remove the rear wheels and tires. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

5. NOTE: On both sides.

Remove the screw and the pushpins.

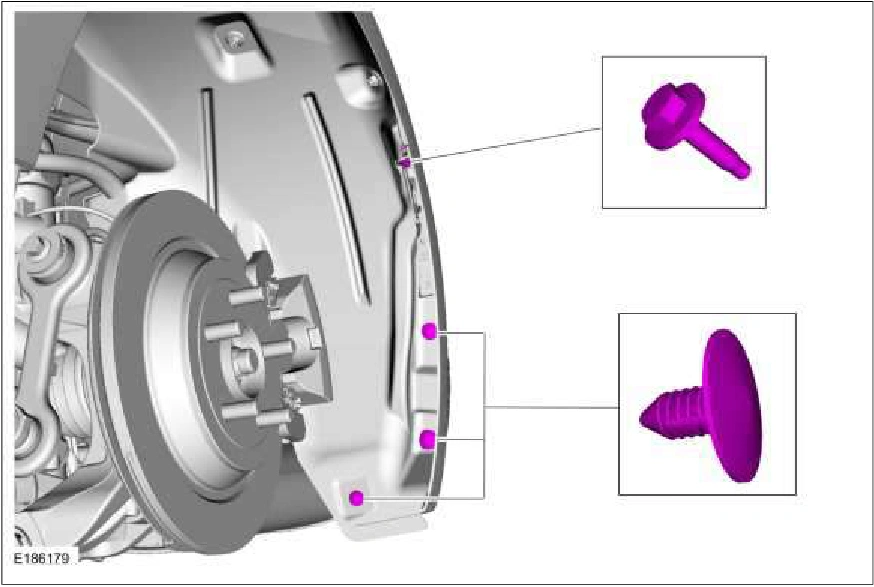

Rear Bumper Cover — original illustration 2, reference 1681Original colors & callouts · Select to enlarge

6. Remove the bumper cover to bracket screws. Torque : 13 lb.in (1.5 Nm)
