Rear Bumper Cover — 2016 workshop reference 1683

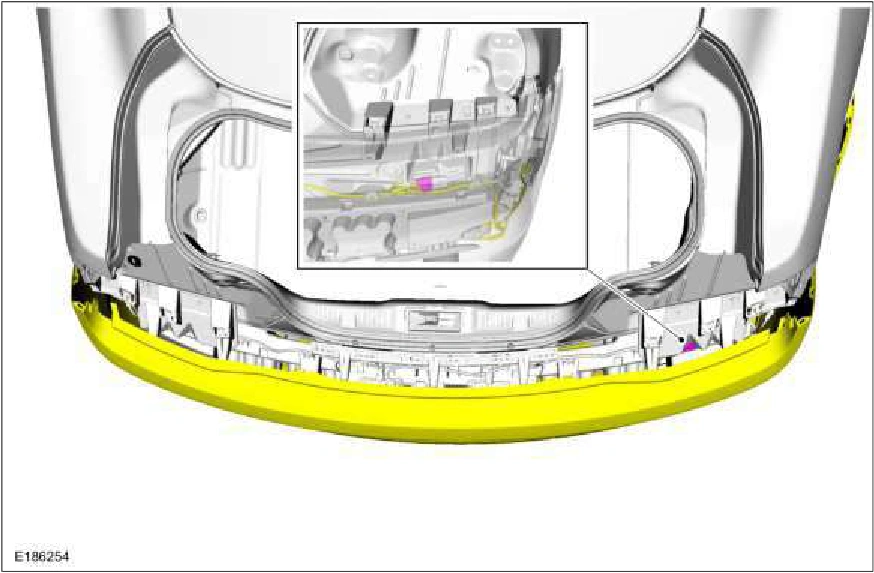

Rear Bumper Cover — original illustration 1, reference 1683Original colors & callouts · Select to enlarge

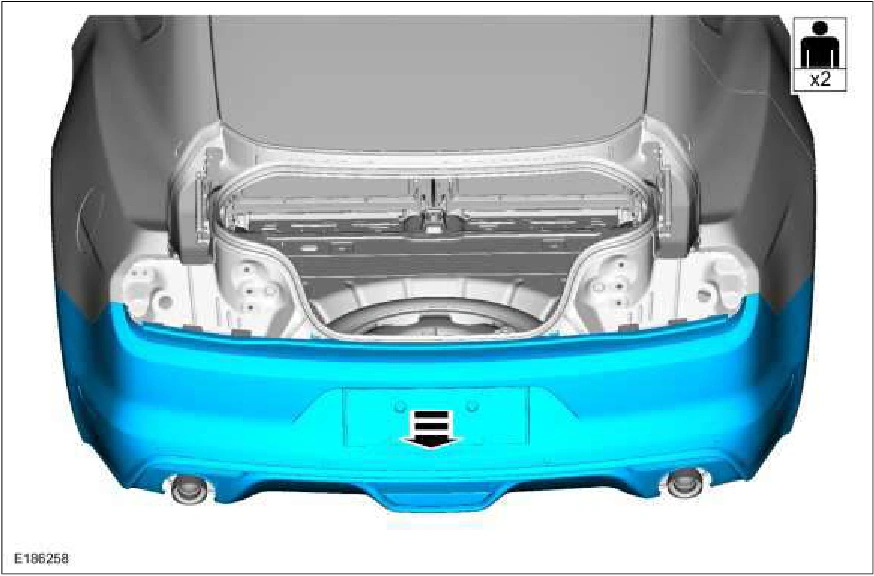

10. Remove the rear bumper cover.

Rear Bumper Cover — original illustration 2, reference 1683Original colors & callouts · Select to enlarge

11. NOTE: On both sides.

Inspect the side bracket for damage.
