Rear Bumper Cover — 2016 workshop reference 1684

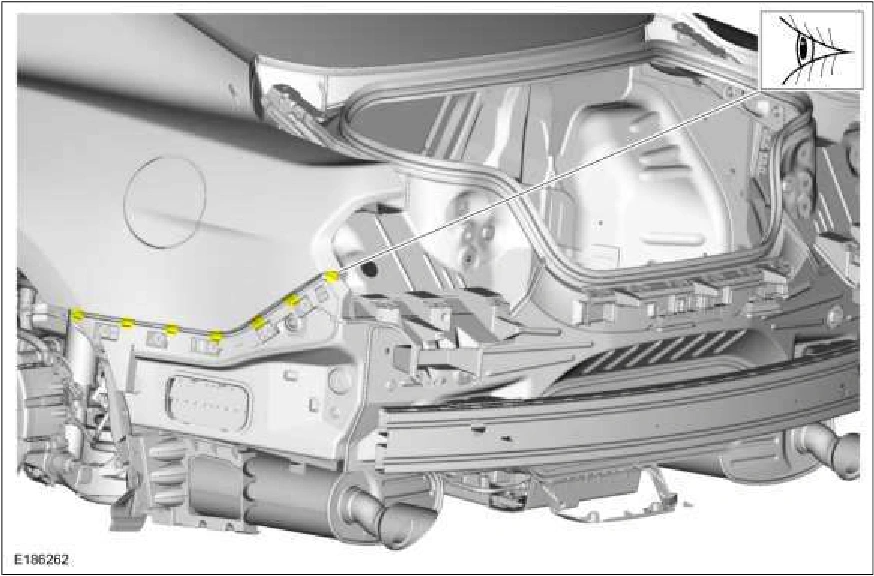

Rear Bumper Cover — original illustration 1, reference 1684Original colors & callouts · Select to enlarge

12. Inspect the rear brackets for damage.

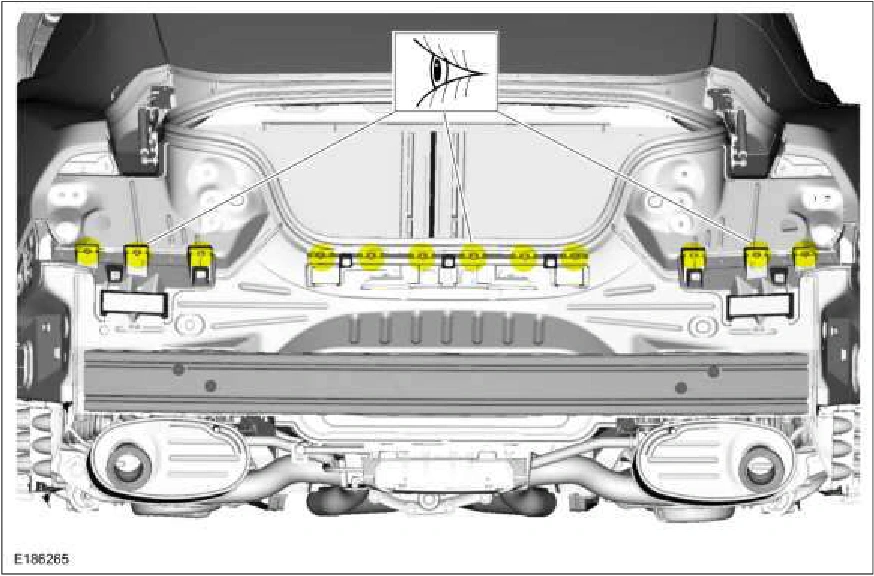

Rear Bumper Cover — original illustration 2, reference 1684Original colors & callouts · Select to enlarge

13. If required, remove the screws and the side bracket. Torque : 13 lb.in (1.5 Nm)
