Rear Bumper Cover - Vehicles With: SVT Performance Package

Removal

All vehicles

1. Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2. Remove the push pins and the pin-type retainers.

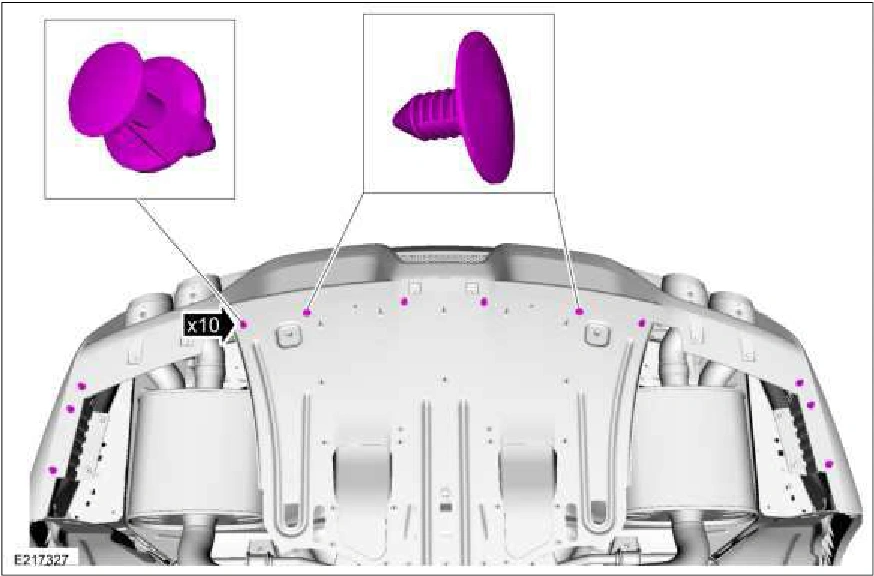

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1687Original colors & callouts · Select to enlarge

3. Remove the rear wheels and tires. Refer to: Wheel and Tire (204-04A Wheels and Tires, Removal and Installation).

4. On both sides. Remove the pin-type retainers, the push pins and the screw then position the fenderliner aside.
