Rear Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,690 / 6,619HTML edition

← Chapter contents Procedure contents

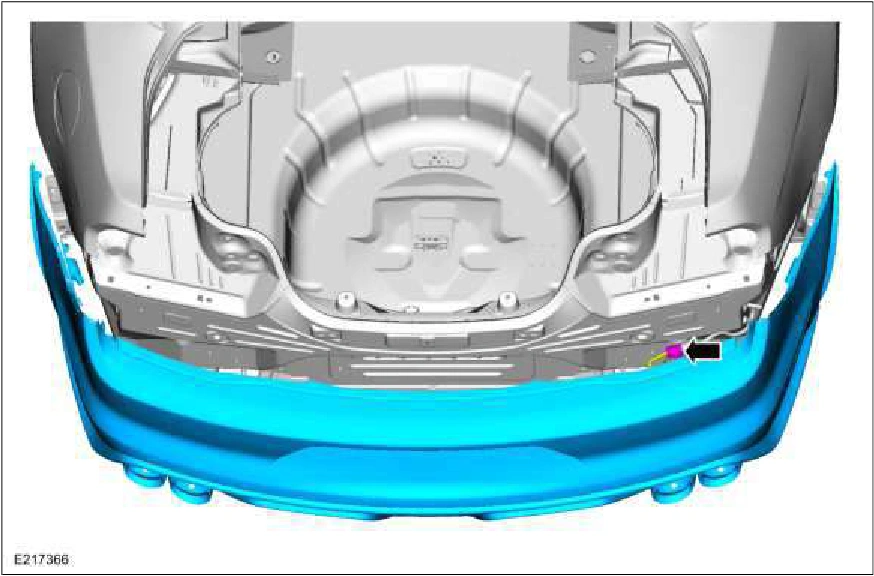

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1690Original colors & callouts · Select to enlarge

10. NOTE: On both sides.

Inspect the brackets for damage.

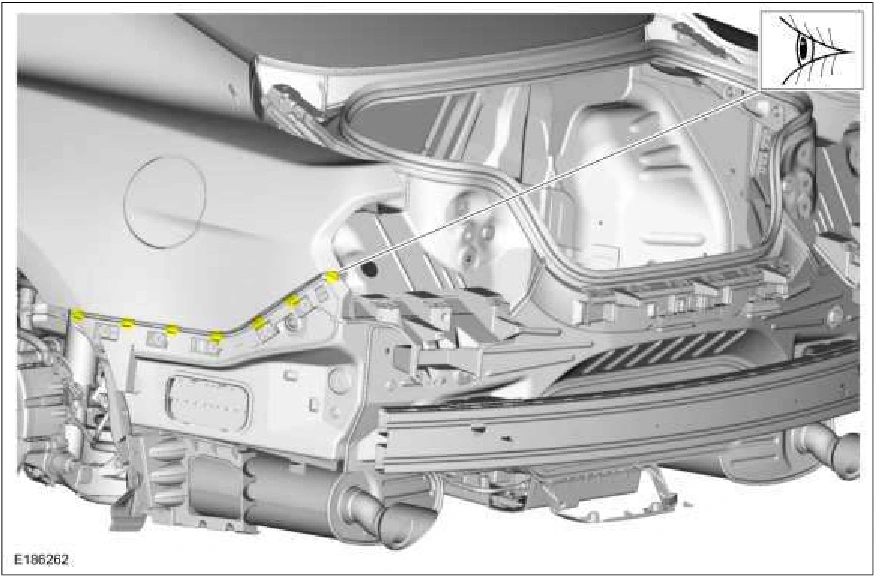

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1690Original colors & callouts · Select to enlarge

11. Inspect the rear brackets for damage.
