Rear Bumper Cover - Vehicles With: SVT Performance Package — 2016 workshop reference 1692

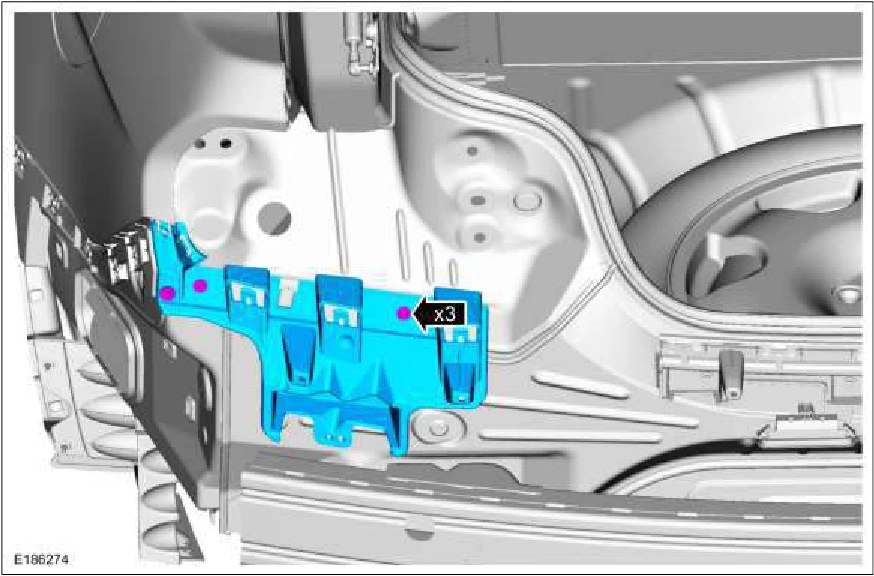

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1692Original colors & callouts · Select to enlarge

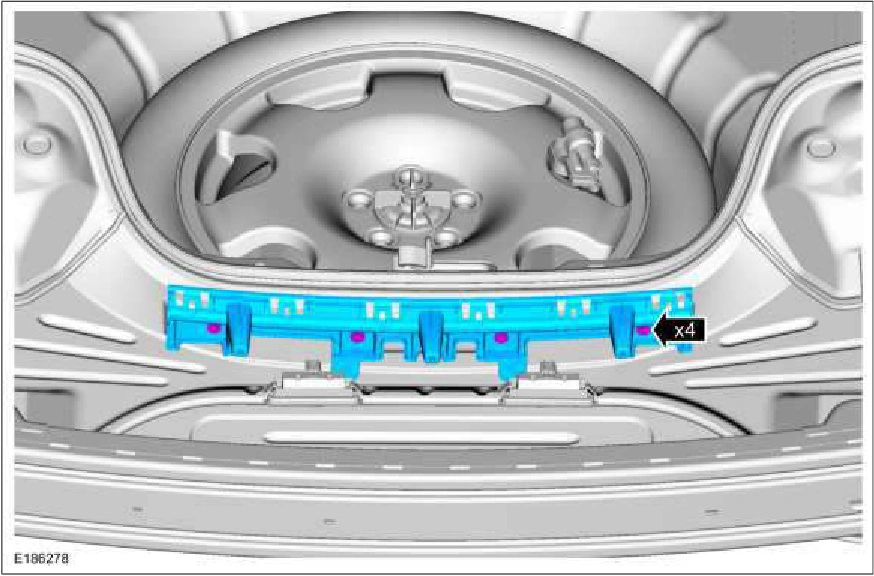

14. If required, remove the screws and the center rear bracket. Torque : 13 lb.in (1.5 Nm)

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1692Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 1692
