Front Bumper Cover

501-19 Bumpers 2016 Mustang

Disassembly and Assembly Procedure revision date: 12/10/2015

DISASSEMBLY

All vehicles

1. Remove the front bumper cover. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

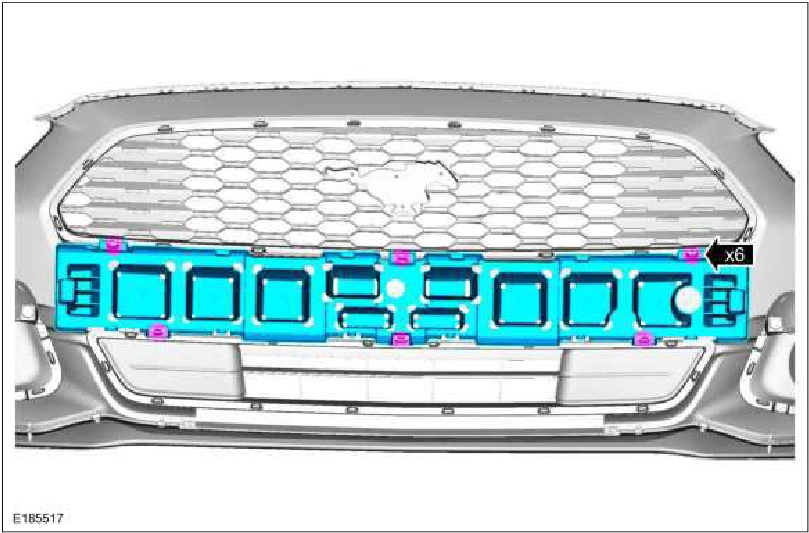

2. Release the clips and remove the front bumper cover reinforcement.

Front Bumper Cover — original illustration 1, reference 1693Original colors & callouts · Select to enlarge

3. NOTE: LH shown, RH similar.

Remove the fog lamp brackets.

1. Remove the screws. Torque : 15 lb.in (1.7 Nm)

2. Release the tabs.

3. Remove the fog lamp bracket.
