Front Bumper Cover — 2016 workshop reference 1696

Front Bumper Cover — original illustration 1, reference 1696Original colors & callouts · Select to enlarge

Vehicles equipped with performance spoiler

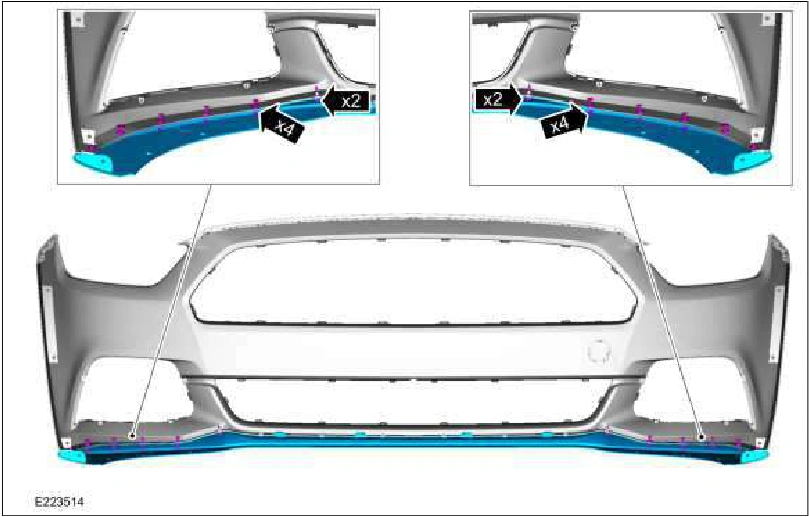

8. Remove the bolts, push pins and the lower spoiler.

Front Bumper Cover — original illustration 2, reference 1696Original colors & callouts · Select to enlarge

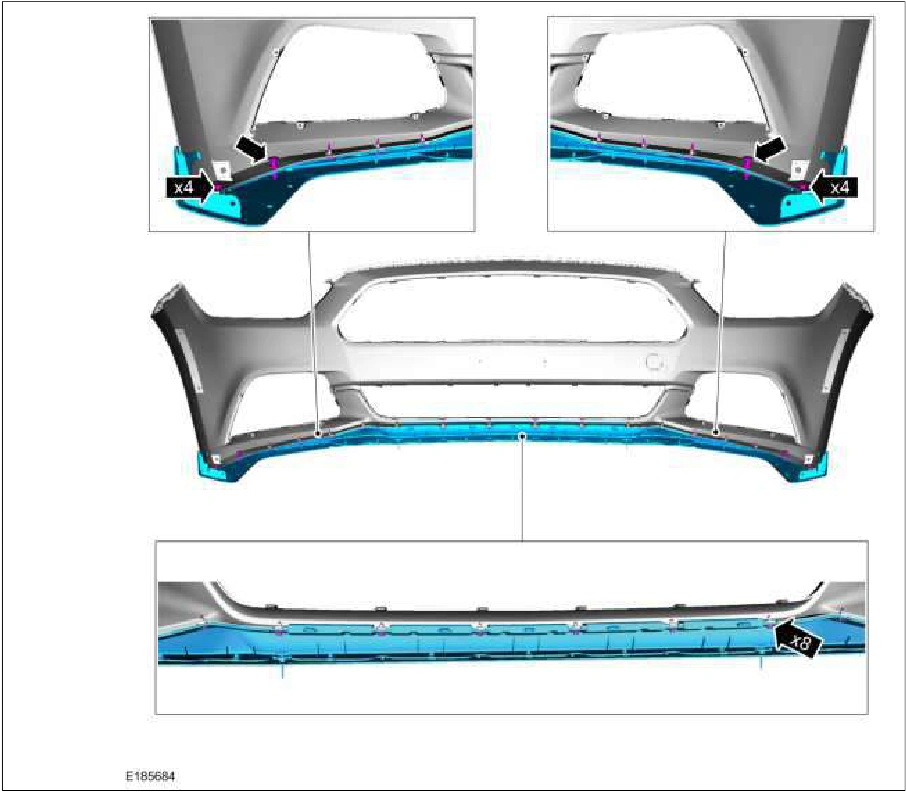

9. Remove the rivets and the spoiler reinforcement.
