Front Bumper Cover - Vehicles With: SVT Performance Package — 2016 workshop reference 1699

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1699Original colors & callouts · Select to enlarge

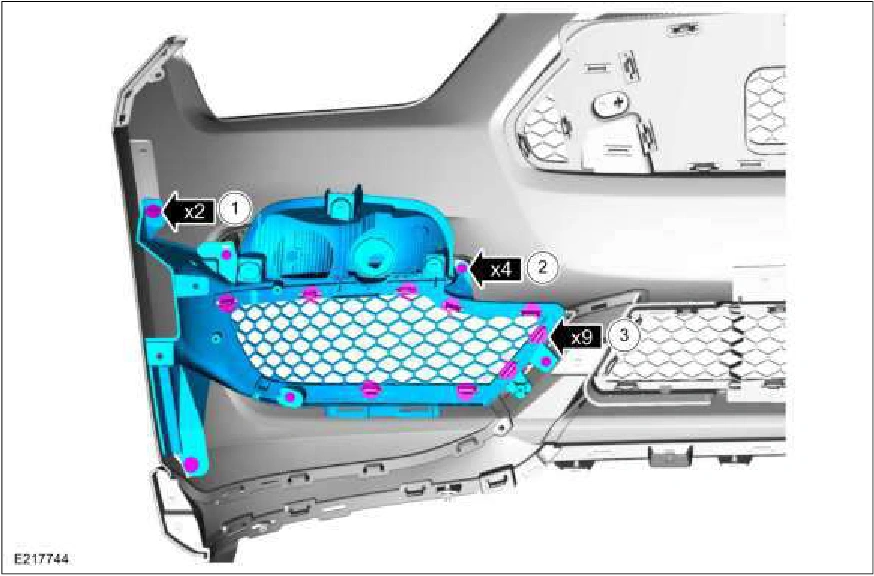

4. NOTE: On both sides.

Remove the turn signal assembly bracket.

1. Remove the outer turn signal bracket screws. Torque : 15 lb.in (1.7 Nm)

2. Remove the inner turn signal bracket screws. Torque : 15 lb.in (1.7 Nm)

3. Release the tabs.

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1699Original colors & callouts · Select to enlarge

5. NOTE: On both sides.

Release the tabs and remove the turn signal trim panel.
