Front Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,700 / 6,619HTML edition

← Chapter contents Procedure contents

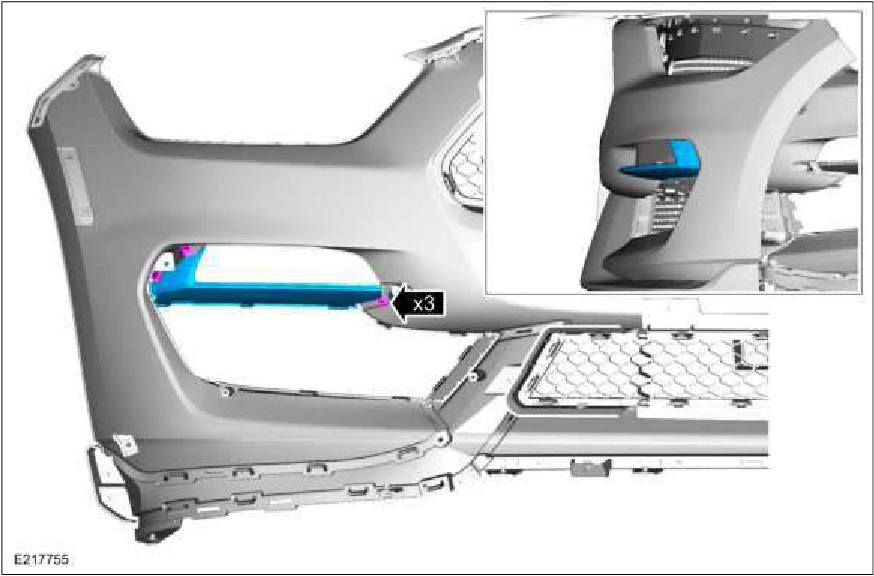

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1700Original colors & callouts · Select to enlarge

6. Release the tabs and remove the lower radiator grille.

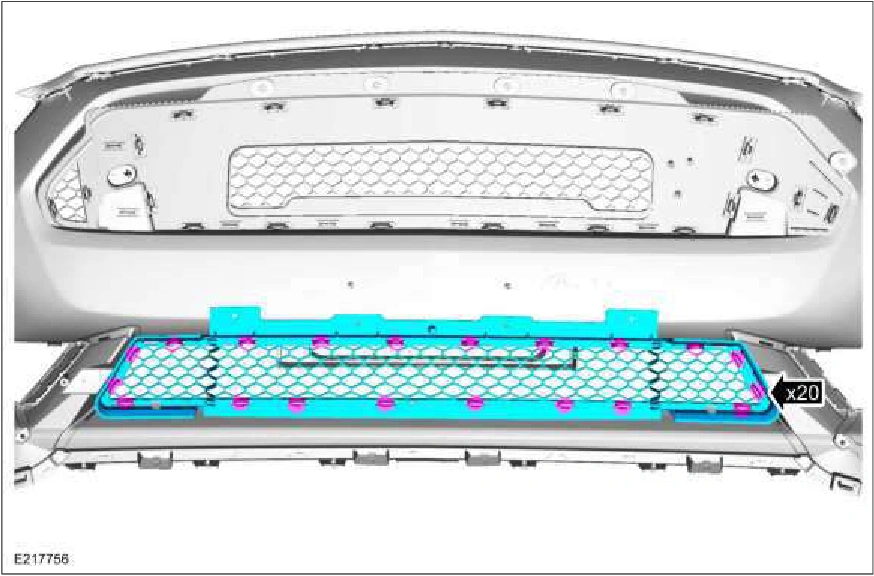

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1700Original colors & callouts · Select to enlarge

7. NOTE: On both sides.

Remove the front bumper cover trim panel.

1. Remove the screws. Torque : 15 lb.in (1.7 Nm)

2. Release the tabs.

Source reference 1700
