501-19 Bumpers 2016 Mustang

Disassembly and Assembly Procedure revision date: 08/12/2015

Front Bumper Cover - Vehicles With: SVT Performance Package

DISASSEMBLY

1. Remove the front bumper cover. Refer to: Front Bumper Cover - Vehicles With: SVT Performance Package (501-19 Bumpers, Removal and Installation).

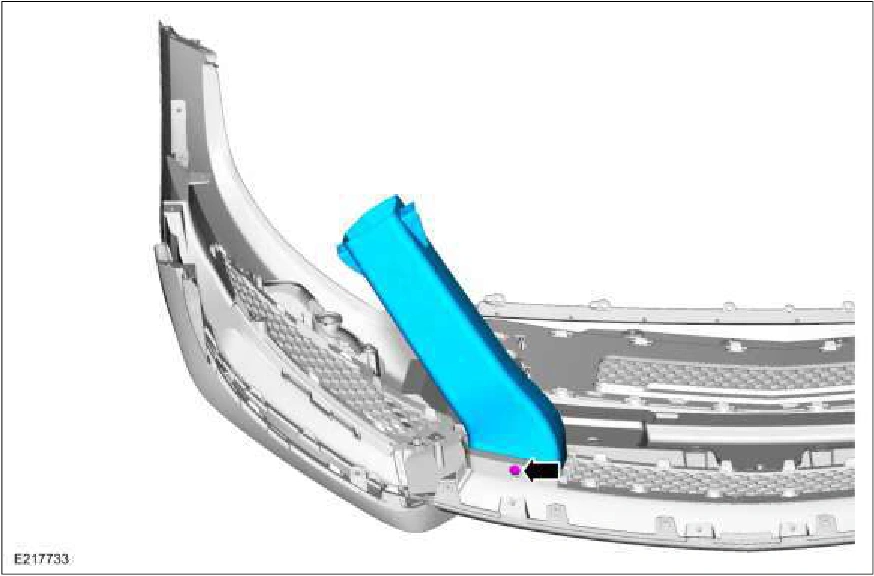

2. NOTE: On both sides.

Remove the pin-type retainer and the air duct.

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1698Original colors & callouts · Select to enlarge

3. Remove the pin-type retainers and the front bumper reinforcement.
