Front Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,701 / 6,619HTML edition
← Chapter contentsProcedure contents

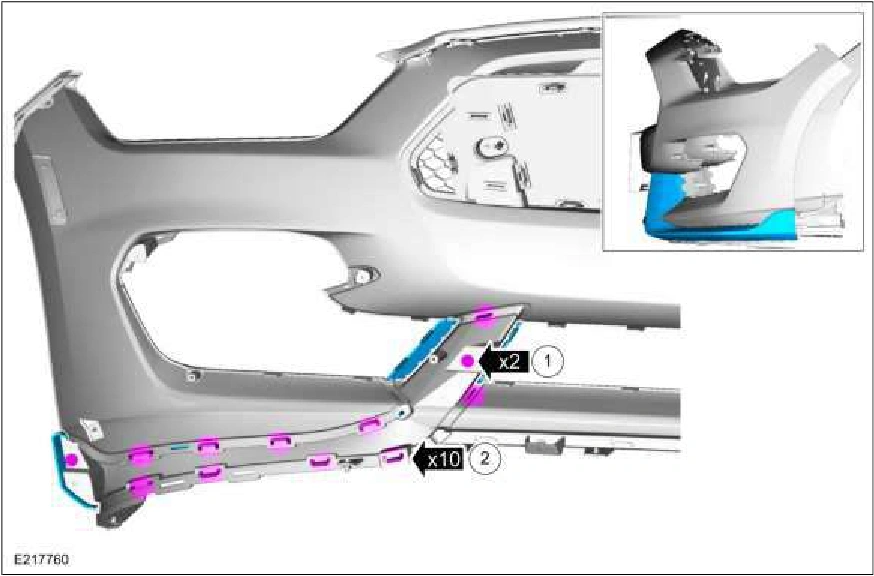

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1701Original colors & callouts · Select to enlarge

8. NOTE: On both sides.

Remove the upper radiator grille trim panel.

1. Remove the screw. Torque : 15 lb.in (1.7 Nm)

2. Release the tabs.

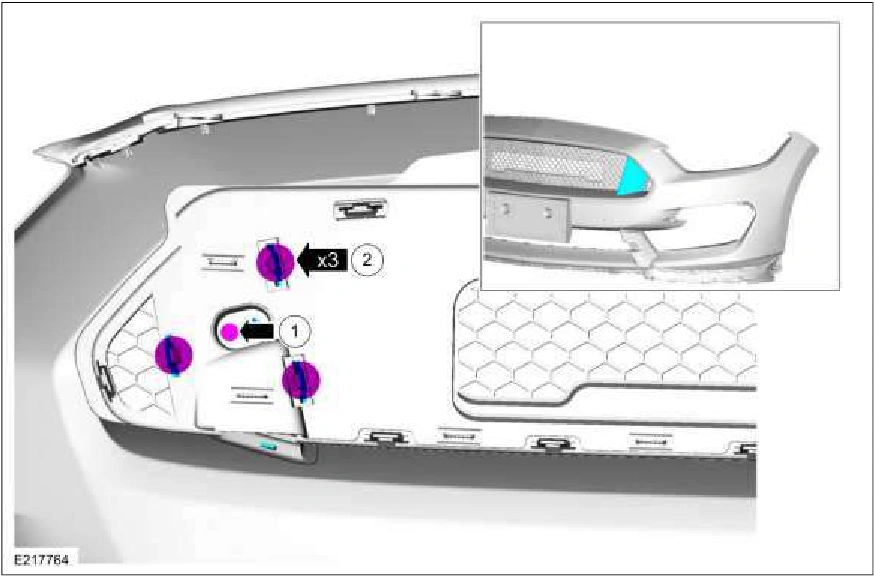

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1701Original colors & callouts · Select to enlarge

9. NOTE: On both sides.

Remove the upper radiator grille panel.

1. Remove the screws. Torque : 15 lb.in (1.7 Nm)

Source reference 1701
