Rear Bumper Cover

501-19 Bumpers 2016 Mustang

Disassembly and Assembly Procedure revision date: 01/14/2016

DISASSEMBLY

All vehicles

1. Remove the rear bumper cover. Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

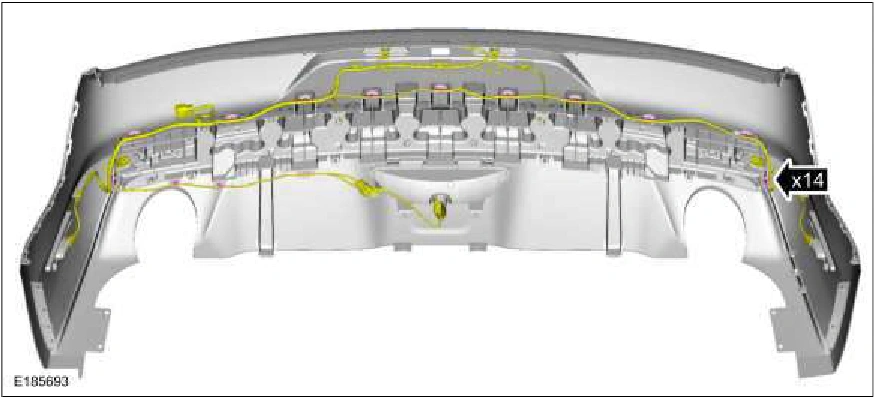

2. Separate the wiring harness guides from the rear bumper cover reinforcement.

Rear Bumper Cover — original illustration 1, reference 1704Original colors & callouts · Select to enlarge

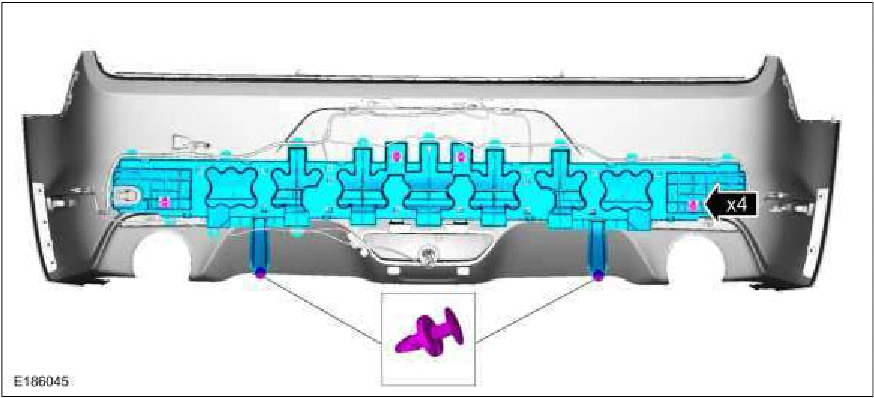

3. Remove the pin-type retainers, release the tabs and remove the rear bumper cover reinforcement.

Rear Bumper Cover — original illustration 2, reference 1704Original colors & callouts · Select to enlarge

4. Remove the rear bumper wiring harness.

1. Disconnect the electrical connectors.

2. Disconnect the wiring guides.

Source reference 1704
