Rear Bumper Cover — 2016 workshop reference 1707

Rear Bumper Cover — original illustration 1, reference 1707Original colors & callouts · Select to enlarge

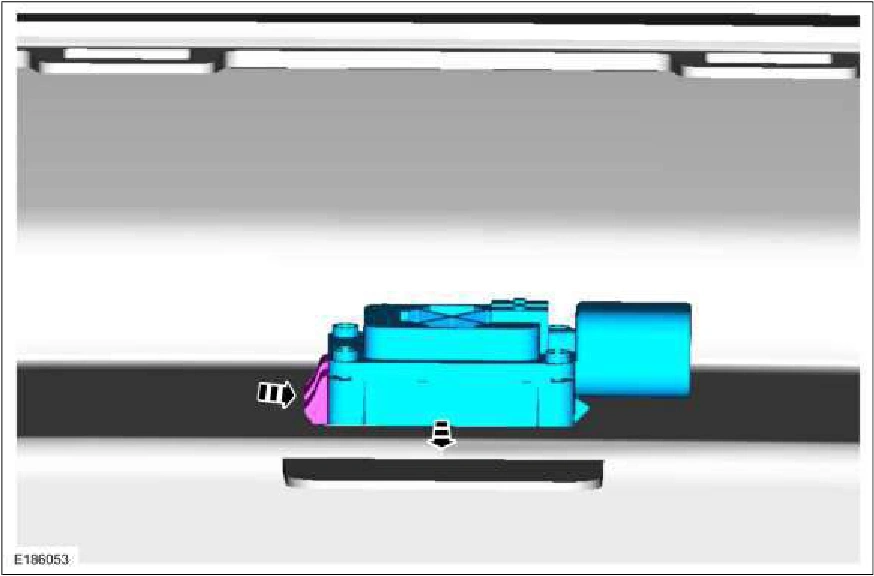

9. NOTE: On both sides.

Remove the nut, release the tabs and remove the rear reflector. Torque : 13 lb.in (1.5 Nm)

Rear Bumper Cover — original illustration 2, reference 1707Original colors & callouts · Select to enlarge

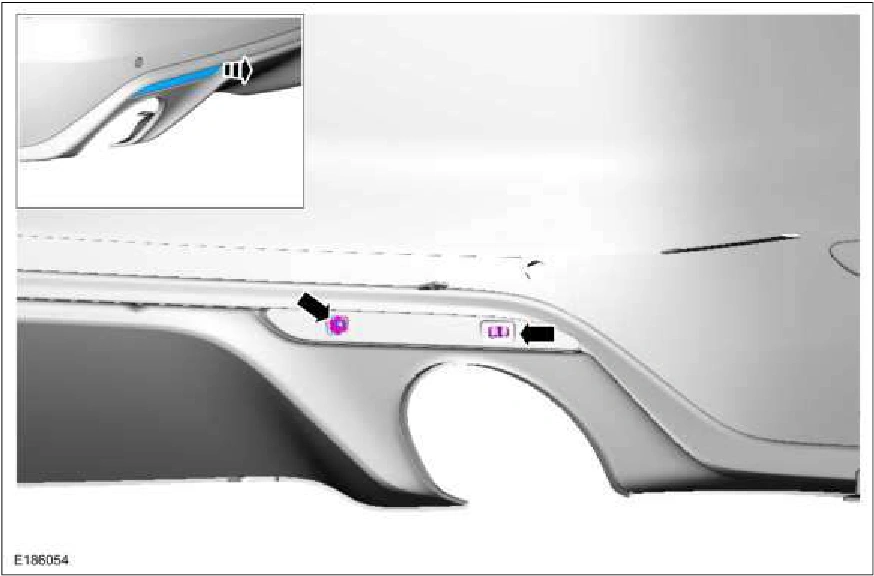

10. NOTE: On both sides.

Release the tab and remove the side marker lamp.
