Rear Bumper Cover — 2016 workshop reference 1708

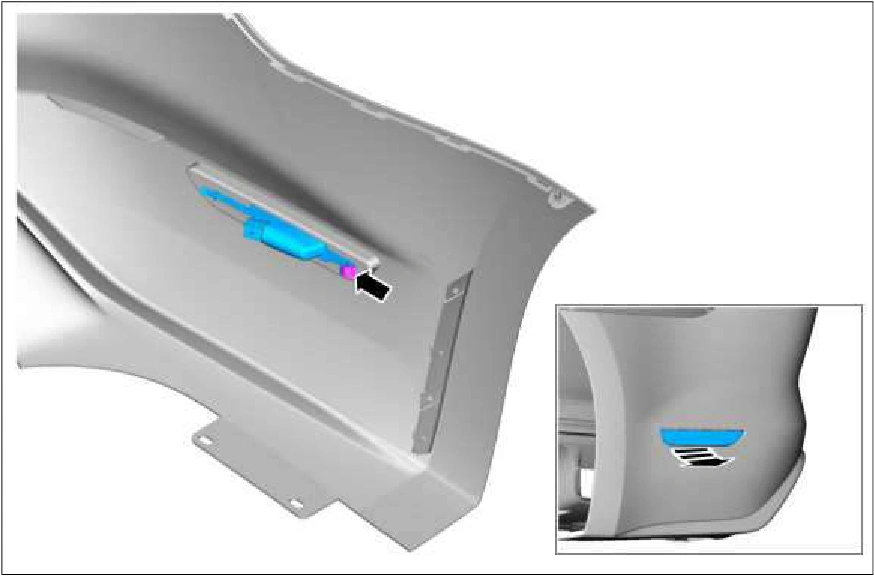

Rear Bumper Cover — original illustration 1, reference 1708Original colors & callouts · Select to enlarge

GT vehicles

11. Remove the lower bumper cover.

1. Remove the screws.

2. Release the tabs.

3. Remove the lower bumper cover.

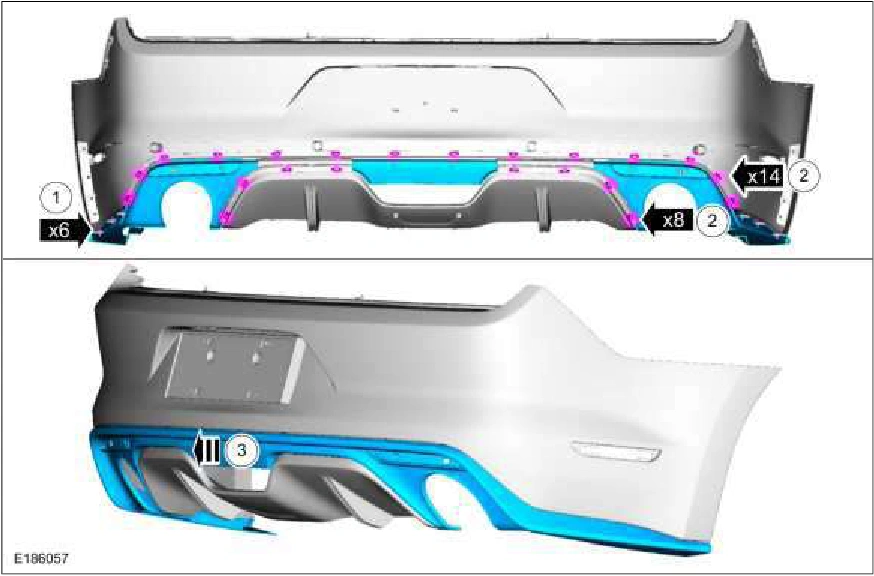

Rear Bumper Cover — original illustration 2, reference 1708Original colors & callouts · Select to enlarge

ASSEMBLY

1. To assemble, reverse the disassembly procedure.

Source reference 1708
