Rear Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,711 / 6,619HTML edition

← Chapter contents Procedure contents

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1711Original colors & callouts · Select to enlarge

7. NOTE: On both sides.

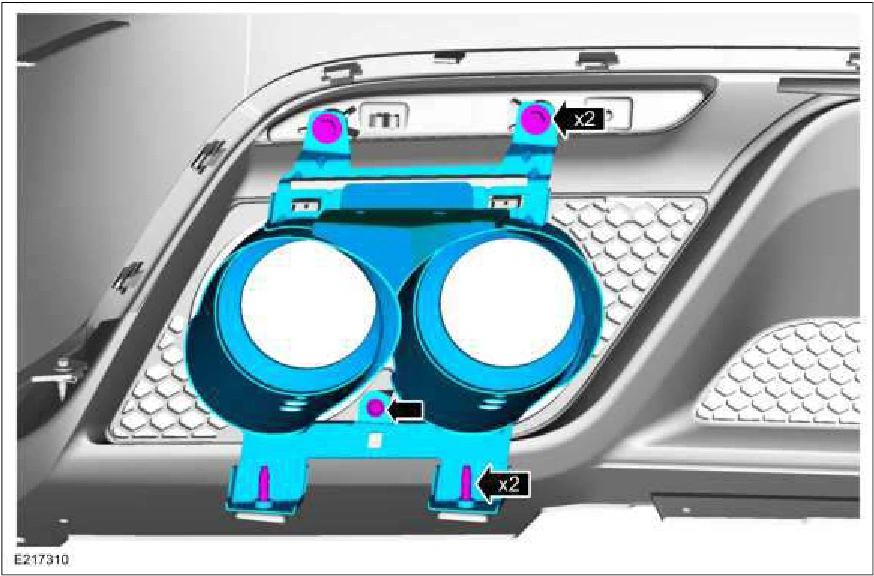

Remove the screws and the exhaust outlet heat shields.

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1711Original colors & callouts · Select to enlarge

8. NOTE: On both sides.

Release the tab and remove the side marker lamp.

Source reference 1711
