2016 workshop · Body & Paint

Rear Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,712 / 6,619HTML edition
← Chapter contentsProcedure contents

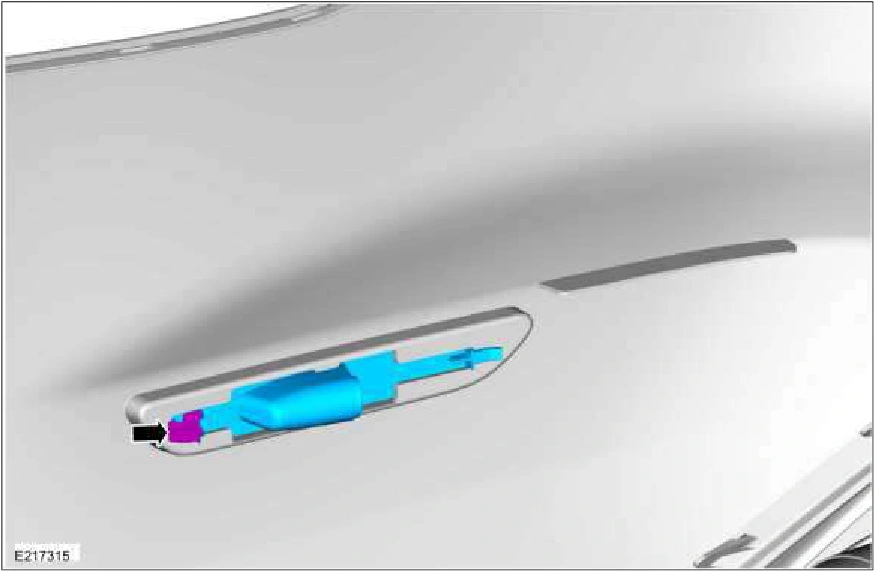

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1712Original colors & callouts · Select to enlarge

9. NOTE: On both sides.

Remove the nut, release the tabs and remove the and the rear reflector. Torque : 13 lb.in (1.5 Nm)

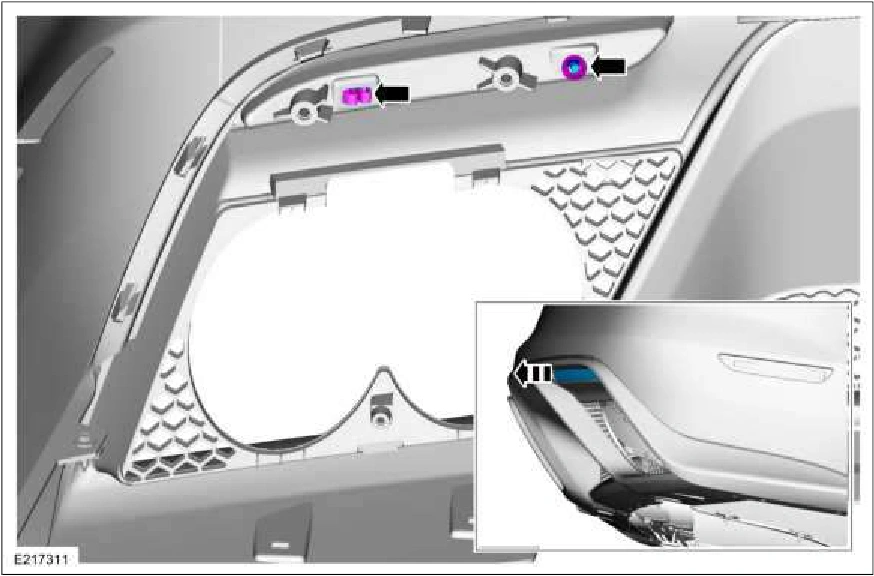

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1712Original colors & callouts · Select to enlarge

10. Remove the screws and the reversing lamp. Torque : 15 lb.in (1.7 Nm)
