Rear Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,713 / 6,619HTML edition

← Chapter contents Procedure contents

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1713Original colors & callouts · Select to enlarge

11. Remove the screws, the clips and the lower reinforcement.

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1713Original colors & callouts · Select to enlarge

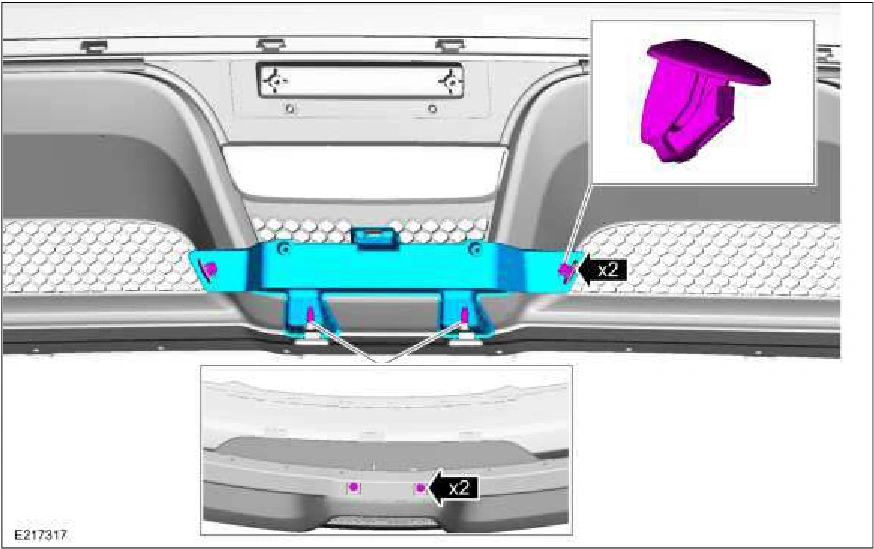

12. Remove the lower bumper cover screws.
