501-19 Bumpers 2016 Mustang

Disassembly and Assembly Procedure revision date: 08/12/2015

Rear Bumper Cover - Vehicles With: SVT Performance Package

DISASSEMBLY

1. Remove the rear bumper cover. Refer to: Rear Bumper Cover - Vehicles With: SVT Performance Package (501-19 Bumpers, Removal and Installation).

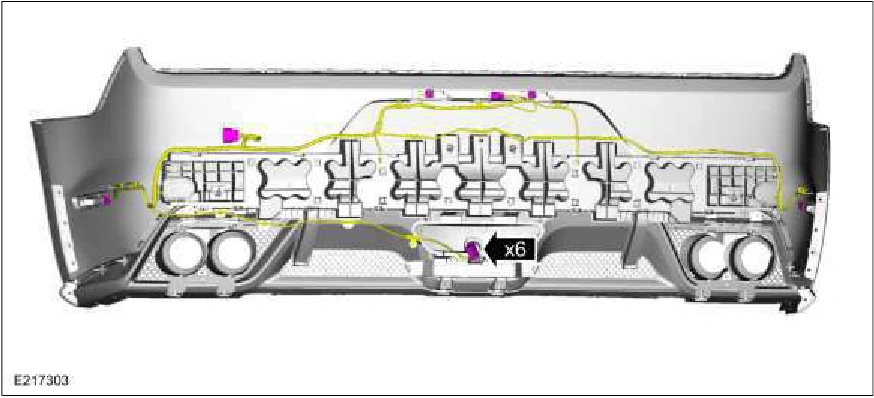

2. Disconnect the rear bumper cover wiring harness electrical connectors.

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1709Original colors & callouts · Select to enlarge

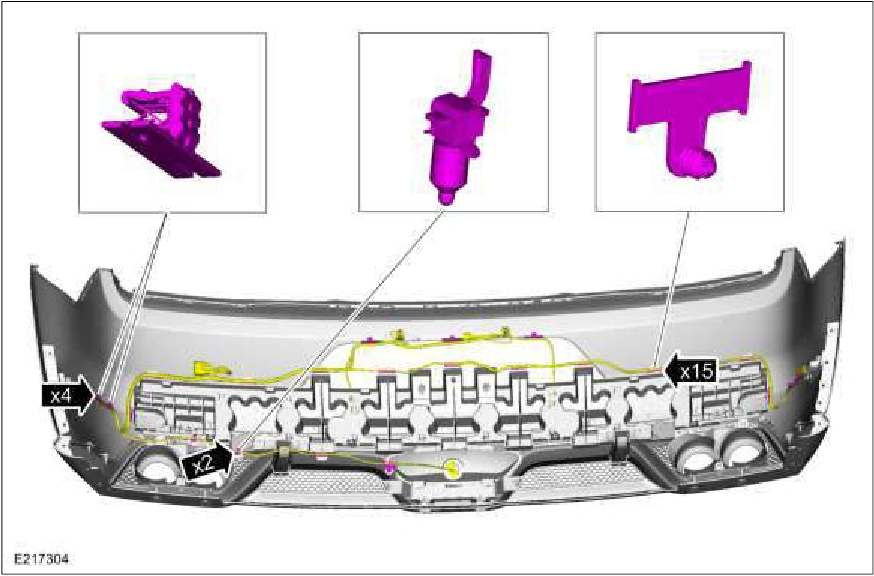

3. Release the rear bumper cover wiring harness guides and remove the wiring harness.

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1709Original colors & callouts · Select to enlarge

4. Release the tabs and remove the rear bumper reinforcement.
