Rear Bumper Cover — 2016 workshop reference 1705

Rear Bumper Cover — original illustration 1, reference 1705Original colors & callouts · Select to enlarge

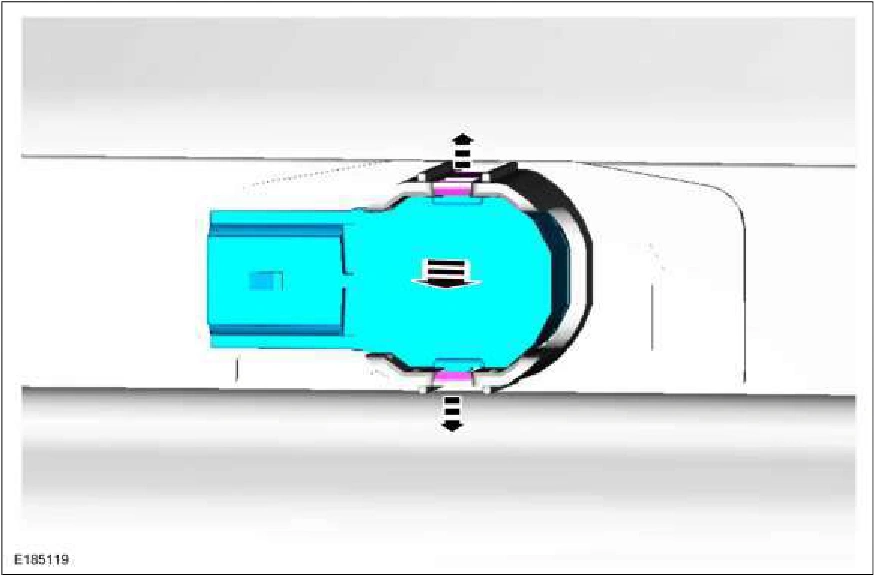

5. Remove the rear park aid sensors.

Rear Bumper Cover — original illustration 2, reference 1705Original colors & callouts · Select to enlarge

6. Remove the screws and the reversing lamp. Torque : 15 lb.in (1.7 Nm)
