Front Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,702 / 6,619HTML edition

← Chapter contents Procedure contents

2. Release the tabs.

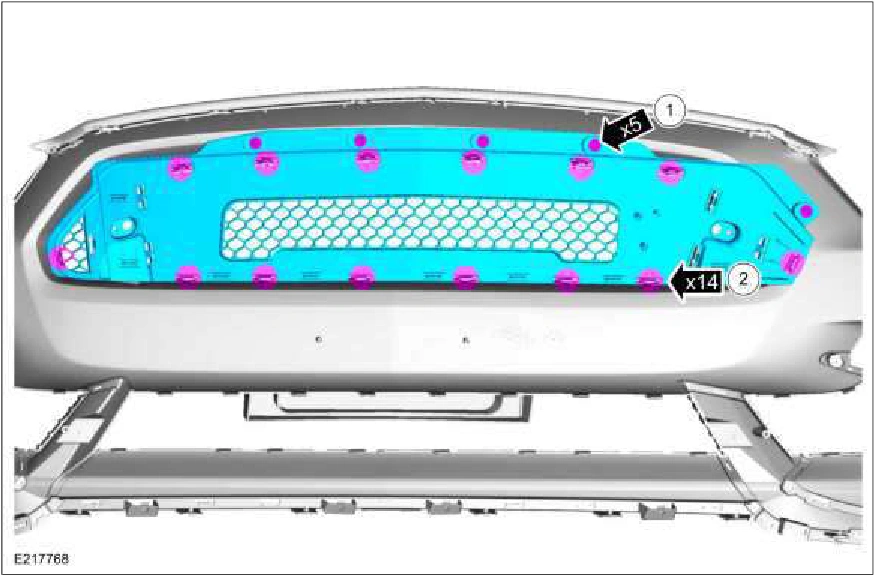

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1702Original colors & callouts · Select to enlarge

10. Release the trim pins and remove the hood seal.

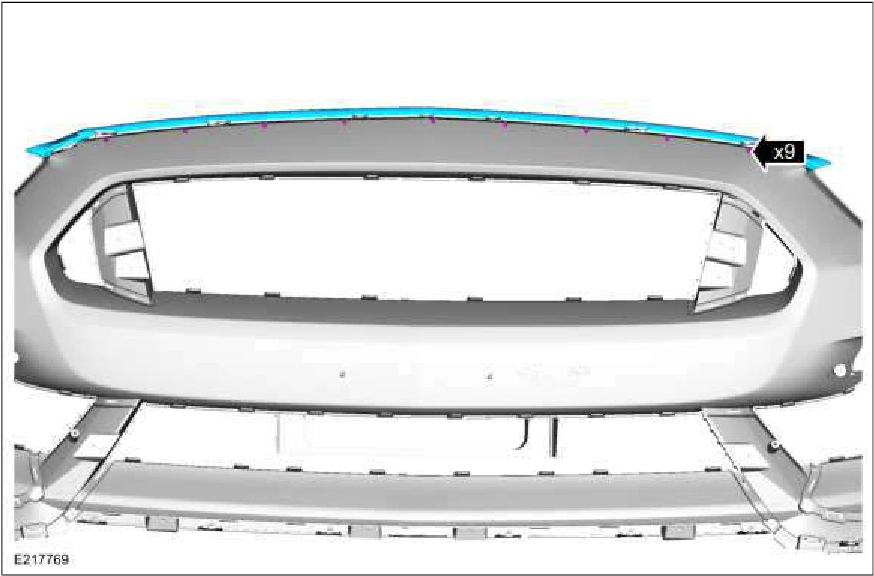

Front Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1702Original colors & callouts · Select to enlarge

11. NOTE: If equipped.

Remove the screws and the lisence plate bracket.

Source reference 1702
