Front Bumper Cover — 2016 workshop reference 1695

Front Bumper Cover — original illustration 1, reference 1695Original colors & callouts · Select to enlarge

6. Remove the hood seal.

Front Bumper Cover — original illustration 2, reference 1695Original colors & callouts · Select to enlarge

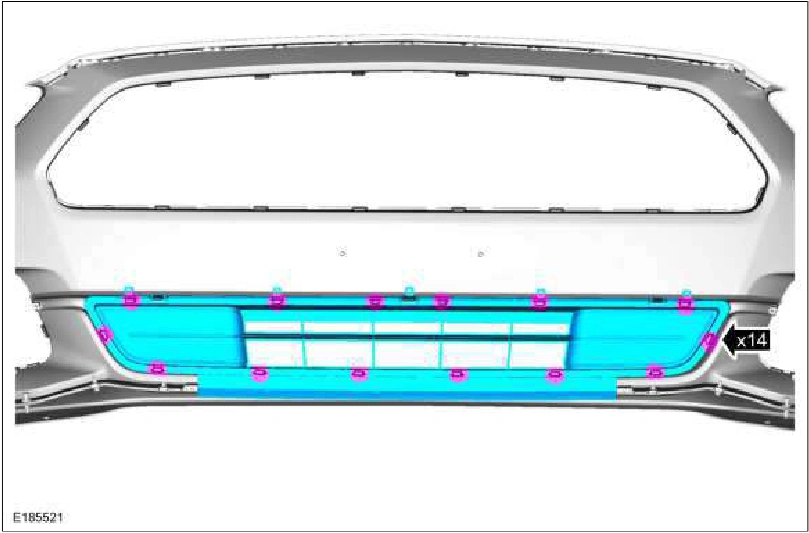

Vehicles equipped with base spoiler

7. Remove the bolts, push pins and the lower spoiler.
