Front Bumper Cover — 2016 workshop reference 1694

Front Bumper Cover — original illustration 1, reference 1694Original colors & callouts · Select to enlarge

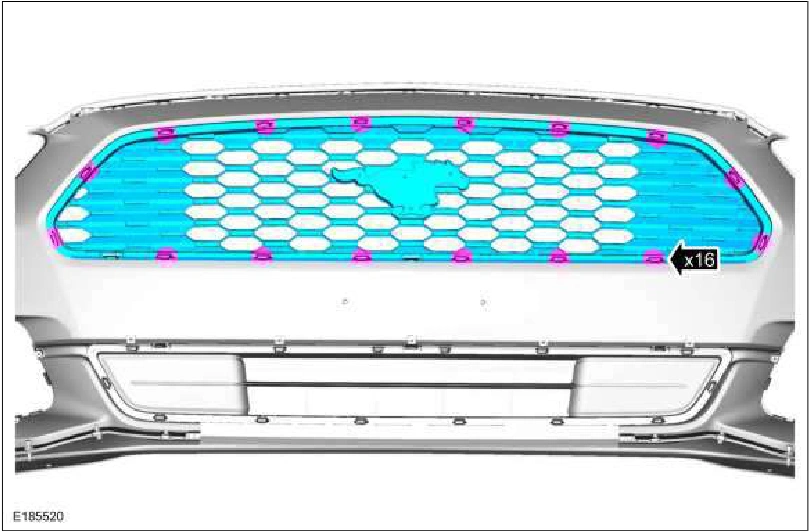

4. Release the tabs and remove the upper radiator grille.

Front Bumper Cover — original illustration 2, reference 1694Original colors & callouts · Select to enlarge

5. Release the tabs and remove the lower radiator grill.
