2016 workshop · Body & Paint

Rear Bumper Cover - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,691 / 6,619HTML edition
← Chapter contentsProcedure contents

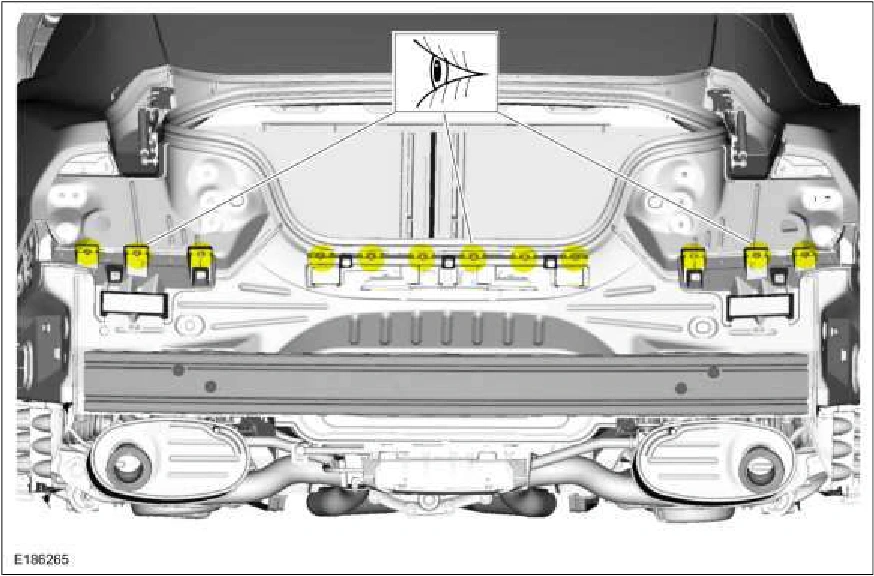

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1691Original colors & callouts · Select to enlarge

12. If required, remove the screws and the side bracket. Torque : 13 lb.in (1.5 Nm)

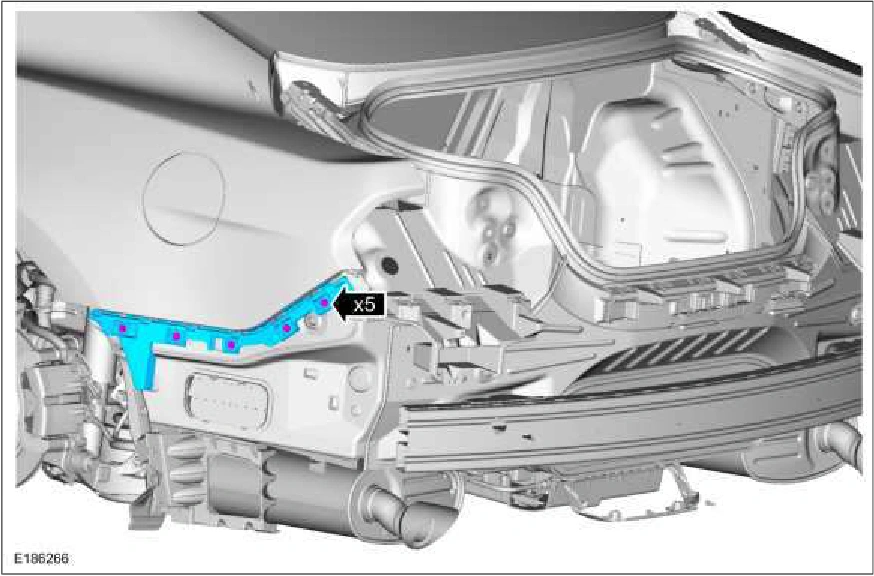

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1691Original colors & callouts · Select to enlarge

13. If required, remove the screws and the outer rear bracket. Torque : 13 lb.in (1.5 Nm)

Source reference 1691

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
