Rear Bumper Cover - Vehicles With: SVT Performance Package — 2016 workshop reference 1688

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1688Original colors & callouts · Select to enlarge

Vehicles equipped with small fender lip mouldings

5. On both sides. Remove the screws and the fender lip moulding. Torque : 13 lb.in (1.5 Nm)

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1688Original colors & callouts · Select to enlarge

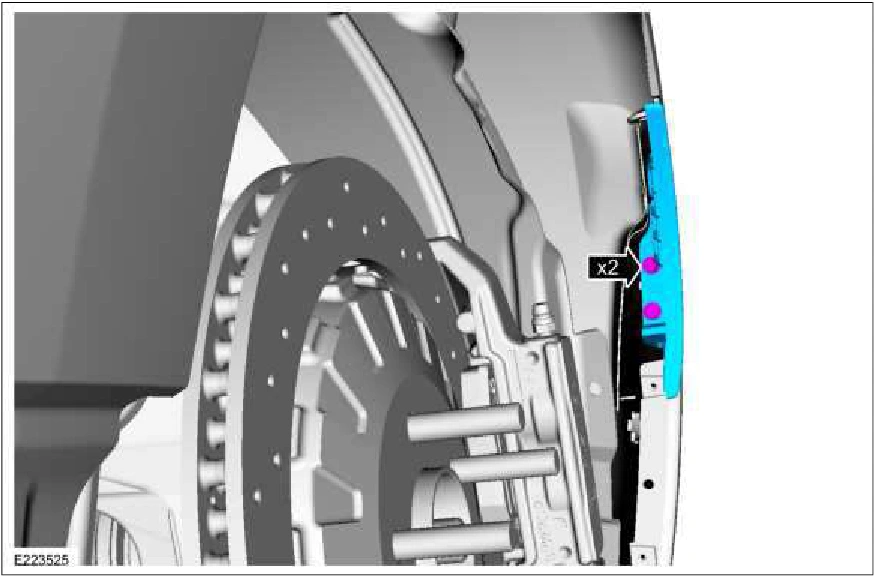

Vehicles equipped with large fender lip mouldings

6. On both sides. Remove the screws and the fender lip moulding. Torque : 13 lb.in (1.5 Nm)

Source reference 1688
