Rear Bumper Cover - Vehicles With: SVT Performance Package — 2016 workshop reference 1689

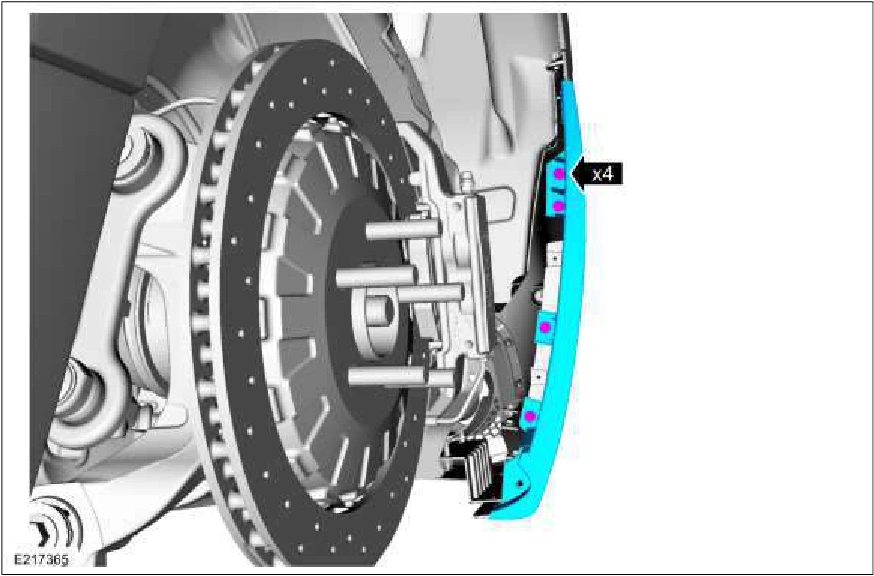

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 1, reference 1689Original colors & callouts · Select to enlarge

All vehicles

7. Remove the rear lamp assemblies. Refer to: Rear Lamp Assembly (417-01 Exterior Lighting, Removal and Installation).

8. Position the rear bumper cover aside for access to electrical connector.

1. Release the sides of the rear bumper cover from the brackets.

2. Release the center of the rear bumper cover from the rear brackets and position aside.

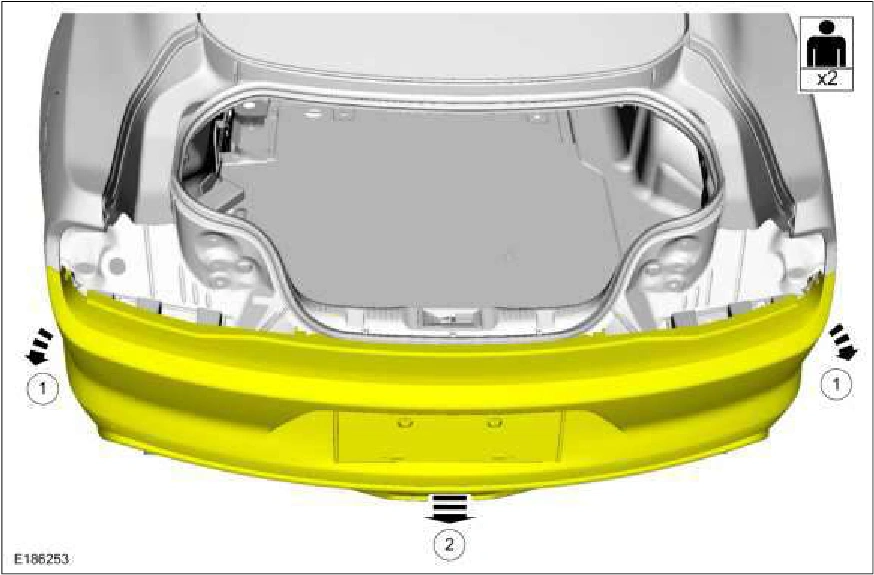

Rear Bumper Cover - Vehicles With: SVT Performance Package — original illustration 2, reference 1689Original colors & callouts · Select to enlarge

9. Disconnect the electrical connector and remove the rear bumper cover.

Source reference 1689
