Rear Bumper Cover — 2016 workshop reference 1685

Rear Bumper Cover — original illustration 1, reference 1685Original colors & callouts · Select to enlarge

14. If required, remove the screws and the outer rear bracket. Torque : 13 lb.in (1.5 Nm)

Rear Bumper Cover — original illustration 2, reference 1685Original colors & callouts · Select to enlarge

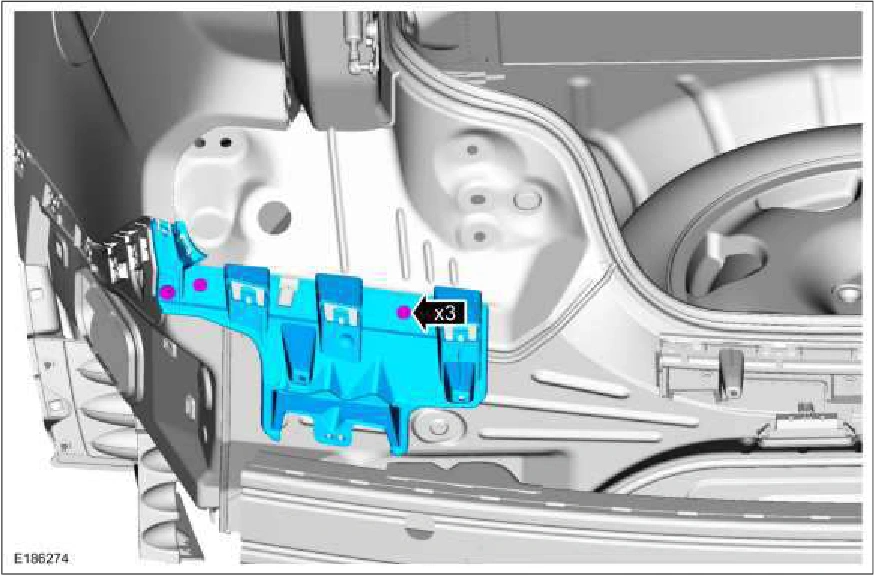

15. If required, remove the screws and the center rear bracket. Torque : 13 lb.in (1.5 Nm)
