501-19 Bumpers 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Rear Bumper Cover

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Raise the vehicle on a hoist. Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).

2.

1. Remove the push pins.

2. Remove the screws. Torque : 13 lb.in (1.5 Nm)

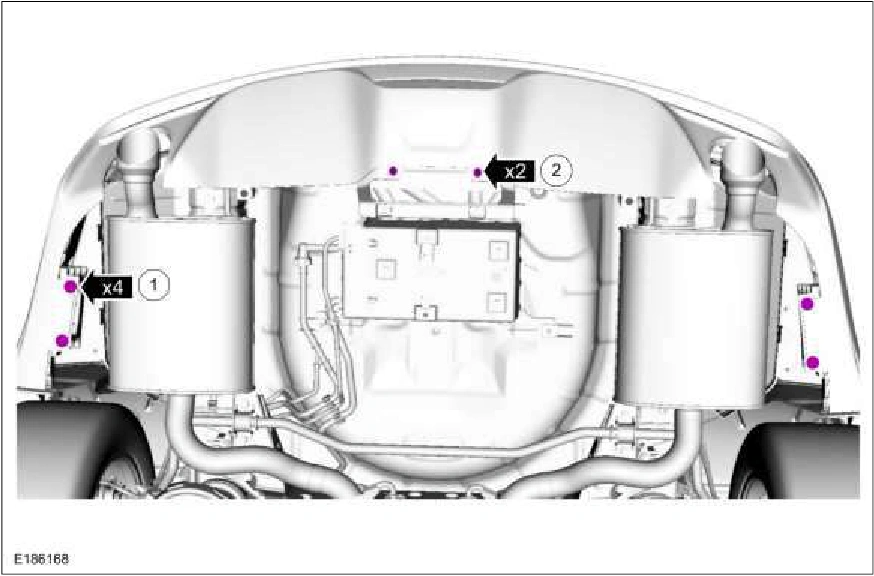

Rear Bumper Cover — original illustration 1, reference 1680Original colors & callouts · Select to enlarge

3. NOTE: On both sides.

Disconnect the rear bumper harness electrical connector and separate the wiring harness guide.

Source reference 1680
