Front Bumper - Vehicles With: SVT Performance Package

501-19 Bumpers

2016 MustangReference 1,659 / 6,619HTML edition

← Chapter contents Procedure contents

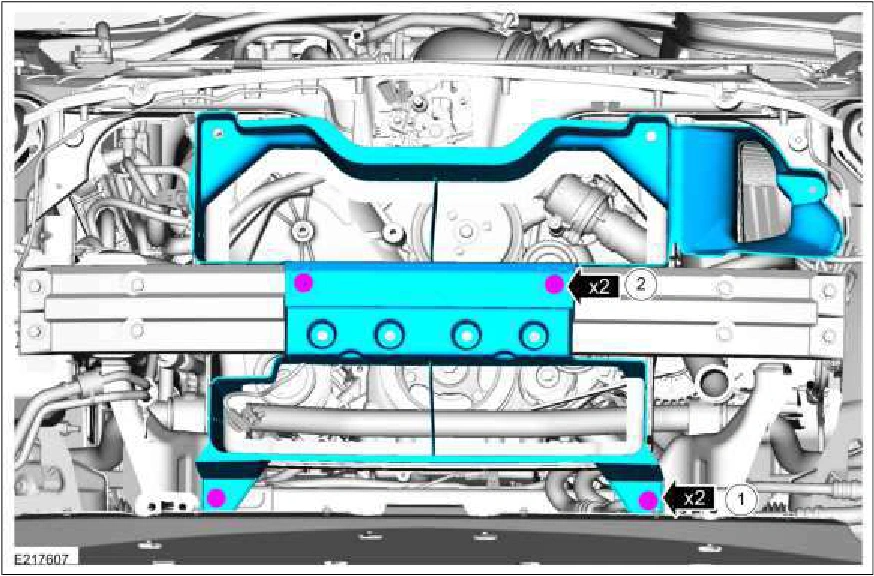

Front Bumper - Vehicles With: SVT Performance Package — original illustration 1, reference 1659Original colors & callouts · Select to enlarge

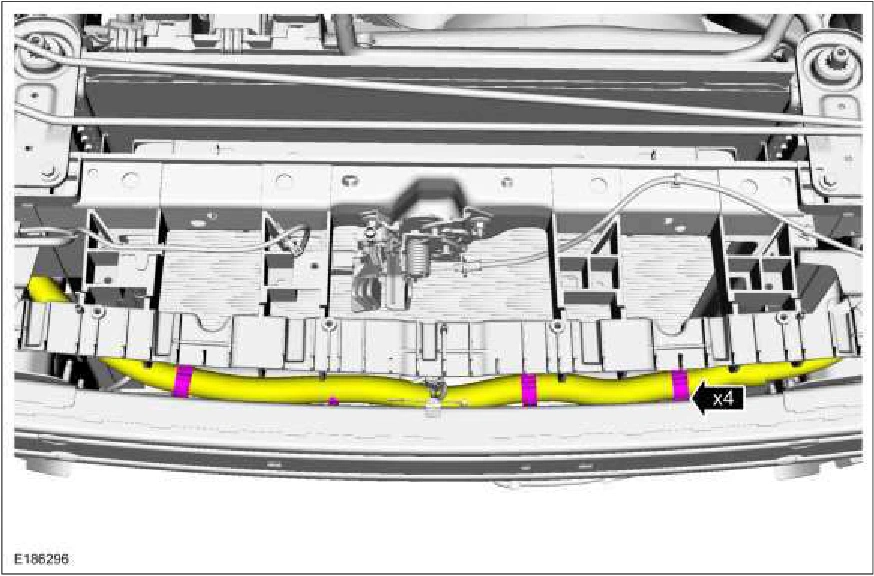

6. Separate the wiring harness guides.

Front Bumper - Vehicles With: SVT Performance Package — original illustration 2, reference 1659Original colors & callouts · Select to enlarge

7. With the help of an assistant, remove the bolts and the front bumper. Torque : 18 lb.ft (25 Nm)

Source reference 1659
