2016 workshop · Engine

Crankshaft Front Seal

303-01C Engine - 5.0L

2016 Mustang5.0LReference 166 / 6,619HTML edition
← Chapter contentsProcedure contents

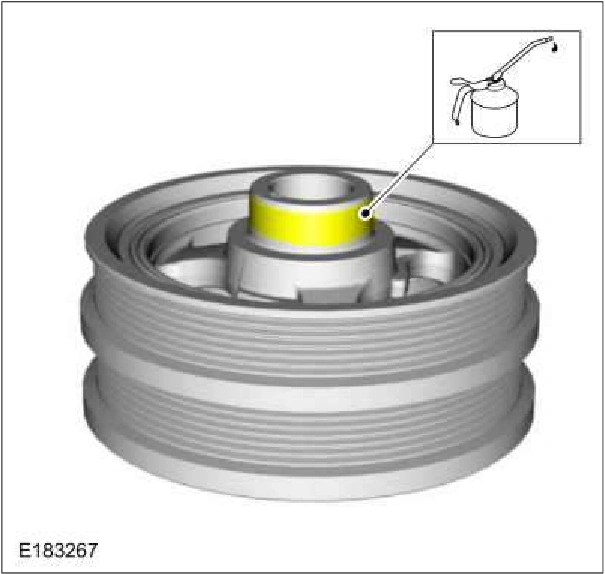

Crankshaft Front Seal — original illustration 1, reference 166Original colors & callouts · Select to enlarge

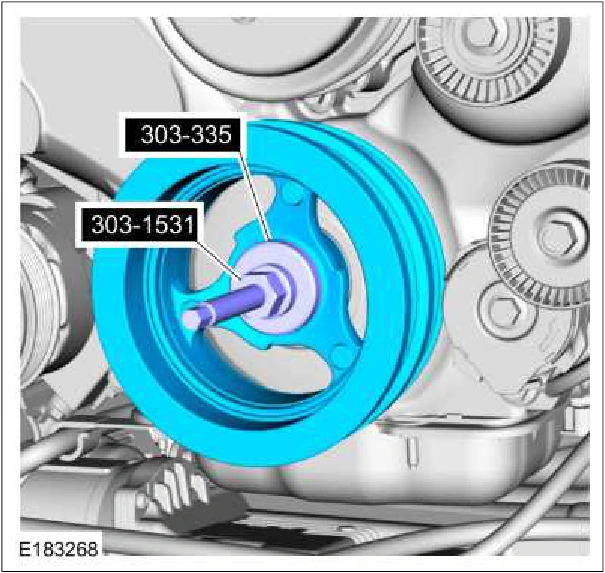

5. Using the special tools, install the crankshaft pulley. Use Special Service Tool: 303-335 (T88T-6701-A) Installer, Front Cover Oil Seal. , 303-1531 Installer, Front Crank Seal and Damper.

Crankshaft Front Seal — original illustration 2, reference 166Original colors & callouts · Select to enlarge

6. Using the Strap Wrench, install a new crankshaft pulley bolt and the original washer. Use the General Equipment: Strap Wrench Torque : Stage 1: 103 lb.ft (140 Nm) Stage 2: Loosen: 360° Stage 3: 74 lb.ft (100 Nm) Stage 4: 90°

Source reference 166
