Crankshaft Front Seal — 2016 workshop reference 163

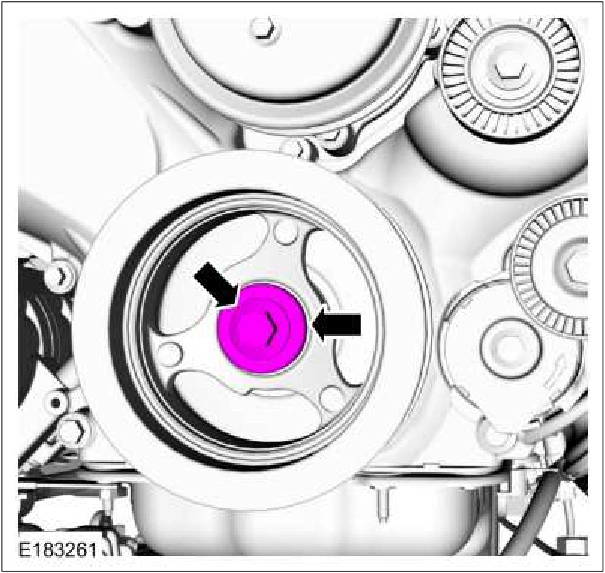

Crankshaft Front Seal — original illustration 1, reference 163Original colors & callouts · Select to enlarge

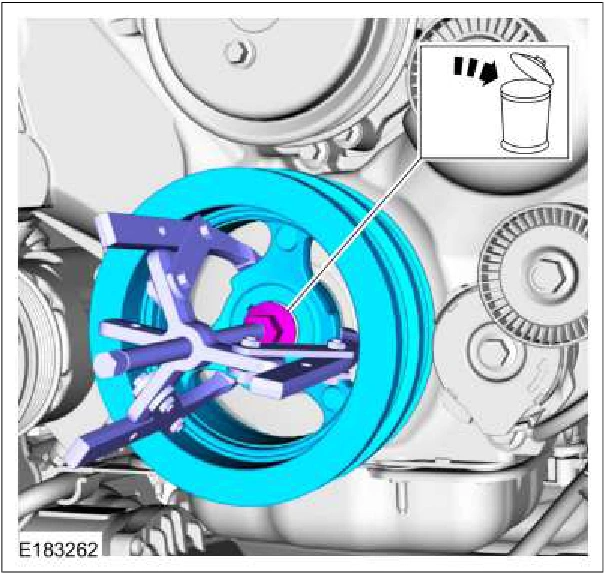

3. Using the 3 Leg Puller and the crankshaft pulley bolt, remove the crankshaft pulley. Use the General Equipment: Three Leg Puller Discard the crankshaft pulley bolt.

Crankshaft Front Seal — original illustration 2, reference 163Original colors & callouts · Select to enlarge

4. NOTICE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

Using the special tool, remove and discard the crankshaft front oil seal. Use Special Service Tool: 303-409 (T92C-6700-CH) Remover, Crankshaft Seal.
