Camshaft RH — 2016 workshop reference 161

5. Tighten the bolts. Torque : Stage 1: 53 lb.in (6 Nm) Stage 2: 45°

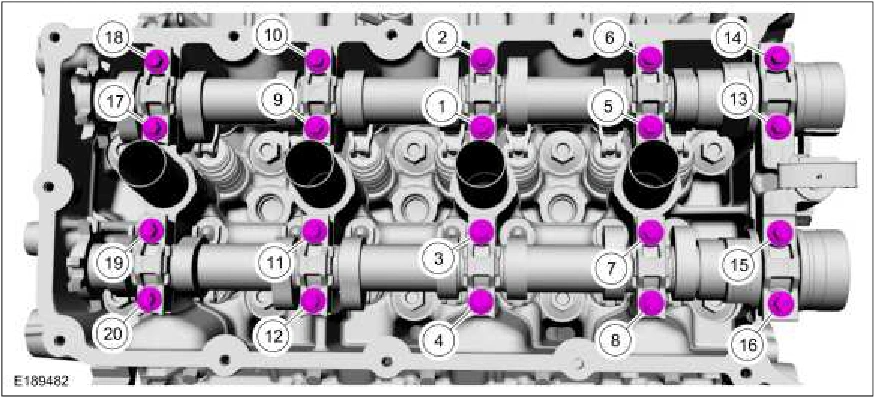

Camshaft RH — original illustration 1, reference 161Original colors & callouts · Select to enlarge

6. Install the VCT system oil filters into the camshafts.

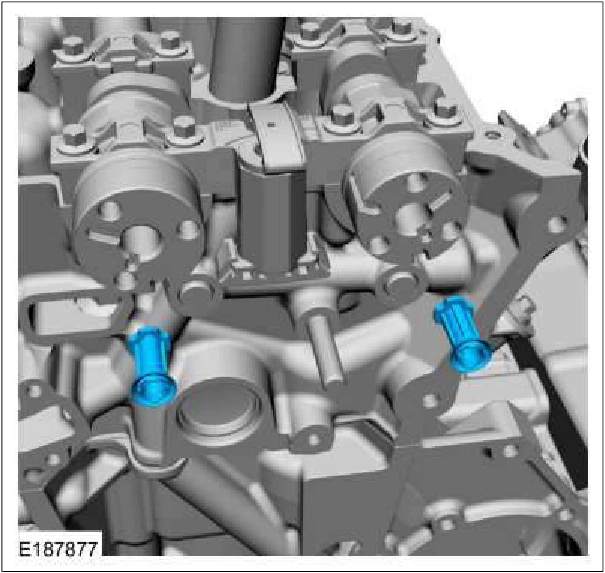

Camshaft RH — original illustration 2, reference 161Original colors & callouts · Select to enlarge

7. Install the RH VCT units. Refer to: Variable Camshaft Timing (VCT) Unit (303-01C Engine - 5.0L 32V Ti-VCT/5.0L Ti-VCT V8 (308kW/418PS), Removal and Installation).
