Camshaft RH — 2016 workshop reference 160

(WSS-M2C945-A)

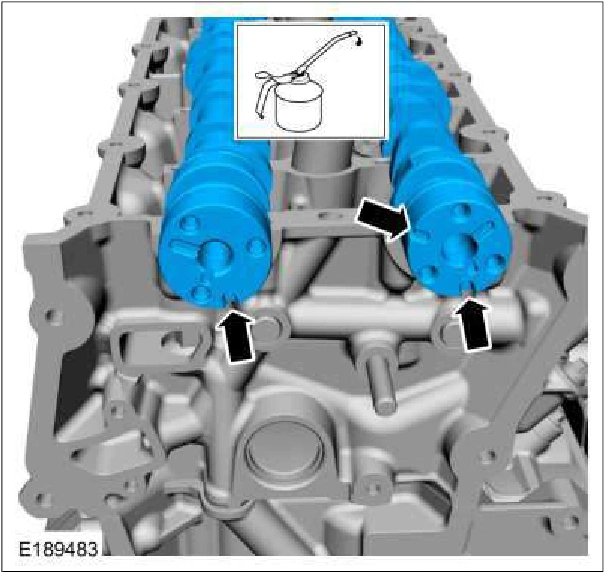

Camshaft RH — original illustration 1, reference 160Original colors & callouts · Select to enlarge

3. NOTE: Do not tighten at this time.

Install the camshaft bearing caps and the bolts.

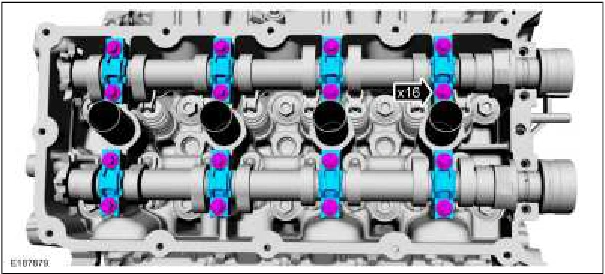

Camshaft RH — original illustration 2, reference 160Original colors & callouts · Select to enlarge

4. NOTE: Do not tighten at this time.

Install the front camshaft bearing mega cap and the bolts.

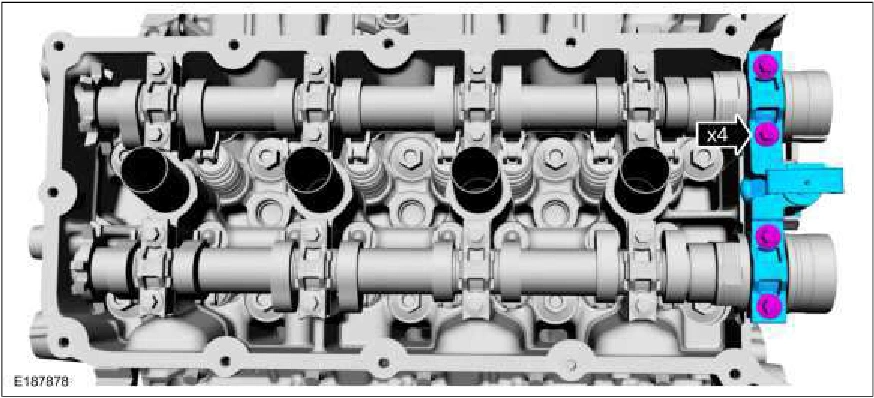

Camshaft RH — original illustration 3, reference 160Original colors & callouts · Select to enlarge

Source reference 160
