Crankshaft Rear Seal

303-01C Engine - 5.0L

2016 Mustang5.0LReference 169 / 6,619HTML edition
← Chapter contentsProcedure contents

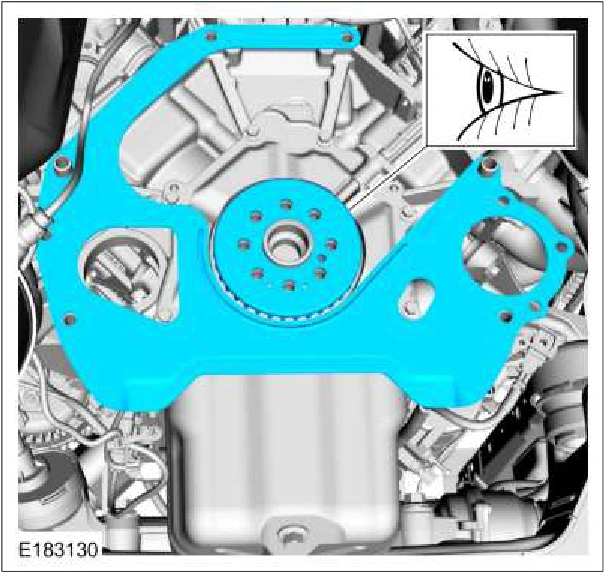

Crankshaft Rear Seal — original illustration 1, reference 169Original colors & callouts · Select to enlarge

3. Using the special tools, remove and discard the crankshaft rear seal. Use Special Service Tool: 303-519 (T95P-6701-EH) Remover, Crankshaft Rear Oil Seal. , 100-001 (T50T- 100-A) Slide Hammer.

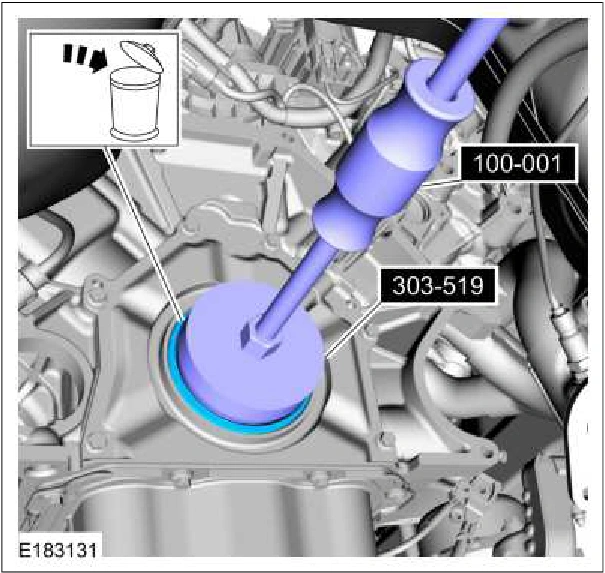

Crankshaft Rear Seal — original illustration 2, reference 169Original colors & callouts · Select to enlarge

Installation

1. Lubricate the seal bore and the seal lips with clean engine oil. Material : Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (U.S.) / XO-5W20-QSP (U.S.) (WSS-M2C945-A)

Source reference 169

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
