Crankshaft Rear Seal — 2016 workshop reference 170

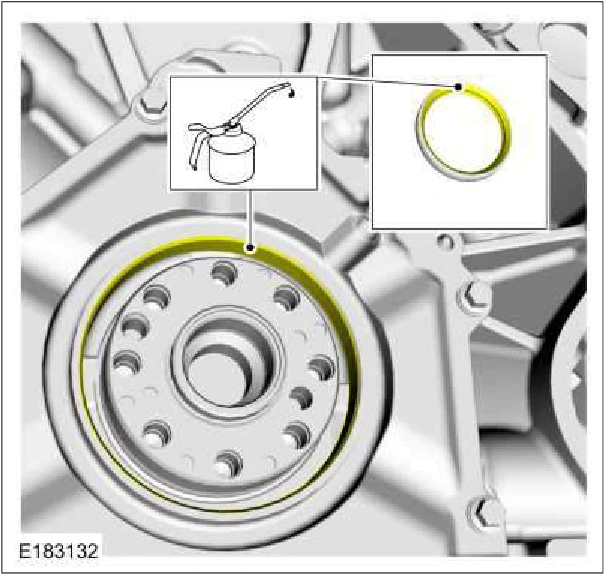

Crankshaft Rear Seal — original illustration 1, reference 170Original colors & callouts · Select to enlarge

2. Position the special tool onto the end of the crankshaft. Use Special Service Tool: 303-1250 Seal Installer, Rear Main. Slide the new crankshaft rear seal onto the tool.

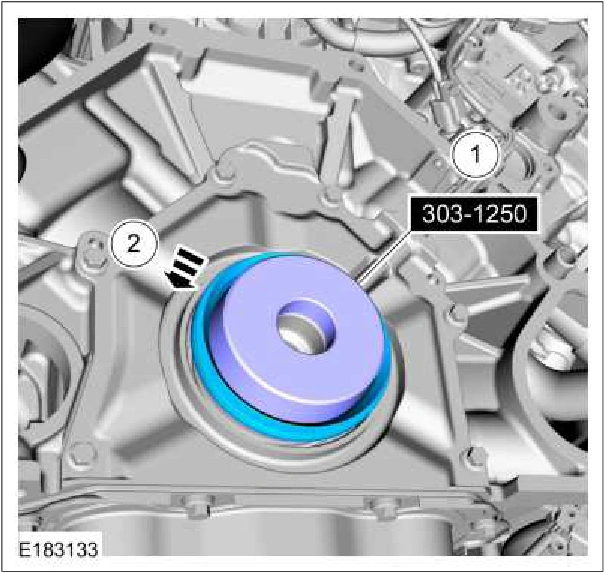

Crankshaft Rear Seal — original illustration 2, reference 170Original colors & callouts · Select to enlarge

3. Using the special tools, install the crankshaft rear seal. Use Special Service Tool: 205-153 (T80T-4000-W) Handle. , 303-1250 Seal Installer, Rear Main.
